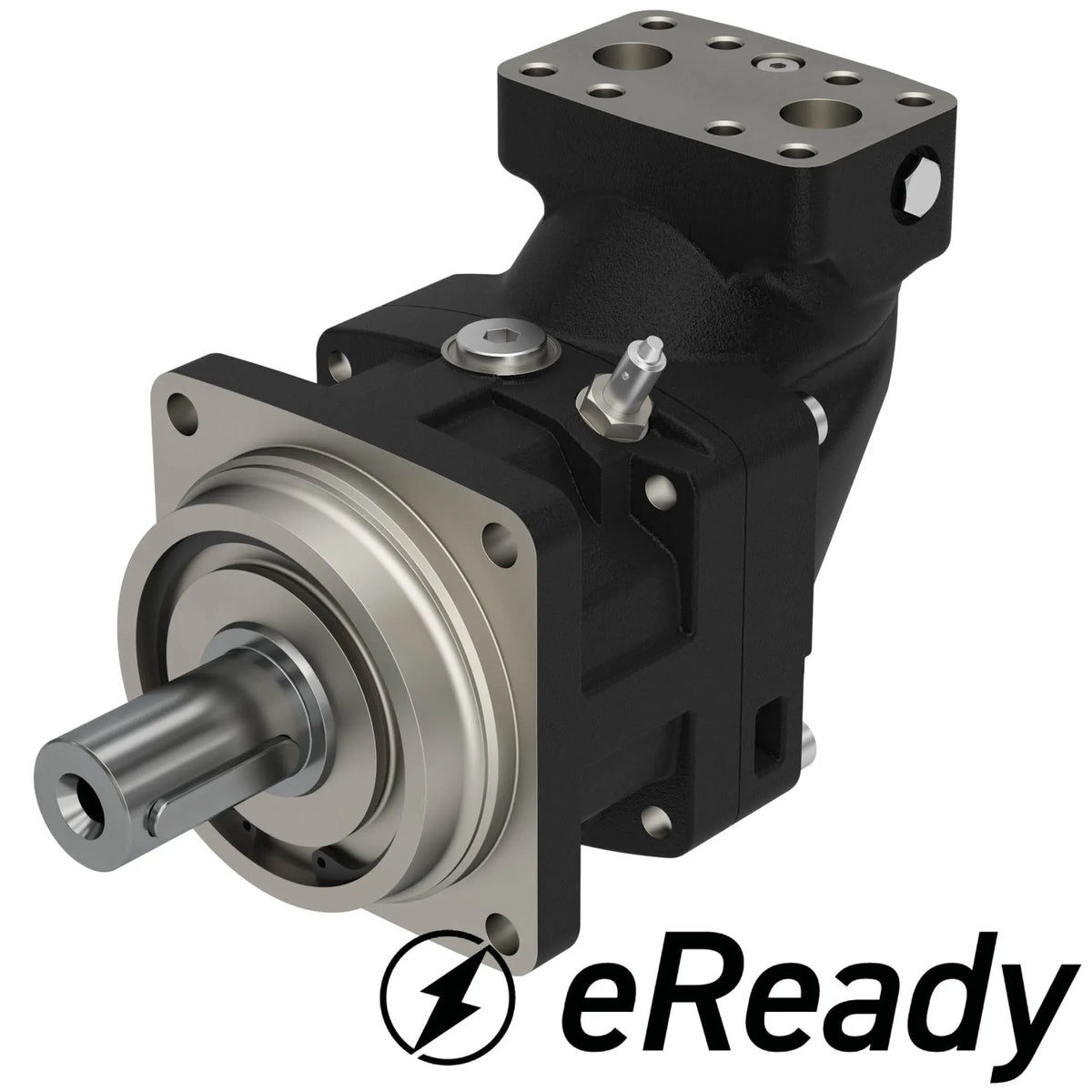

SKU:3722663
F10-107-RS-SV-U-000-0000-P0
Availability
+ 18 days
Availability
Inventory
+ 18 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Details
Details
Function
Pump
Displacement
104.0 cc / 6.37 cu.in.
Rotation variant
Right hand rotation
Main port position
Rear ports – standard
Main ports
SAE 1" 6000 PSI / 7/16"-14
Pilot diameter
127
Mounting flange
SAE C - 4 bolt
Shaft seal
High pressure FPM
Shaft type
SAE spline
Shaft size
SAE C 14T 12/24 DP
Version code
000
Option 1
Standard (no option)
Option 2
Prepared for speed sensor
Weight
26
Weight UOM
KG
Country of origin
SWEDEN
Tariff code
84135061
Technical specification
Technical specification
Body Material
Cast Iron
Division (facet only)
Hydraulic Pump and Motor Europe
Division id
687925
Maximum operating pressure
300 bar, 4351 psi
Port type
Flange
Product series
Bent Axis Fixed Pumps - Series F10
Region
EU
Url
Displacement
104 cm³/rev
Drain option
Yes
Shaft type
Spline
Maximum flow rate
218.4 L/min, 57.7 gal/min
Port connection
ISO 6162-2
Weight
25.8 kg
Flow rate
218.4 l/min
For fluid type
Standard Hydraulic Fluids
Operating pressure
300 bar
Maximum fluid temperature
115 °C, 239 °F
Minimum fluid temperature
-40 °F
No specifications found.
