SKU:GE12S3/4UNFOMDCF

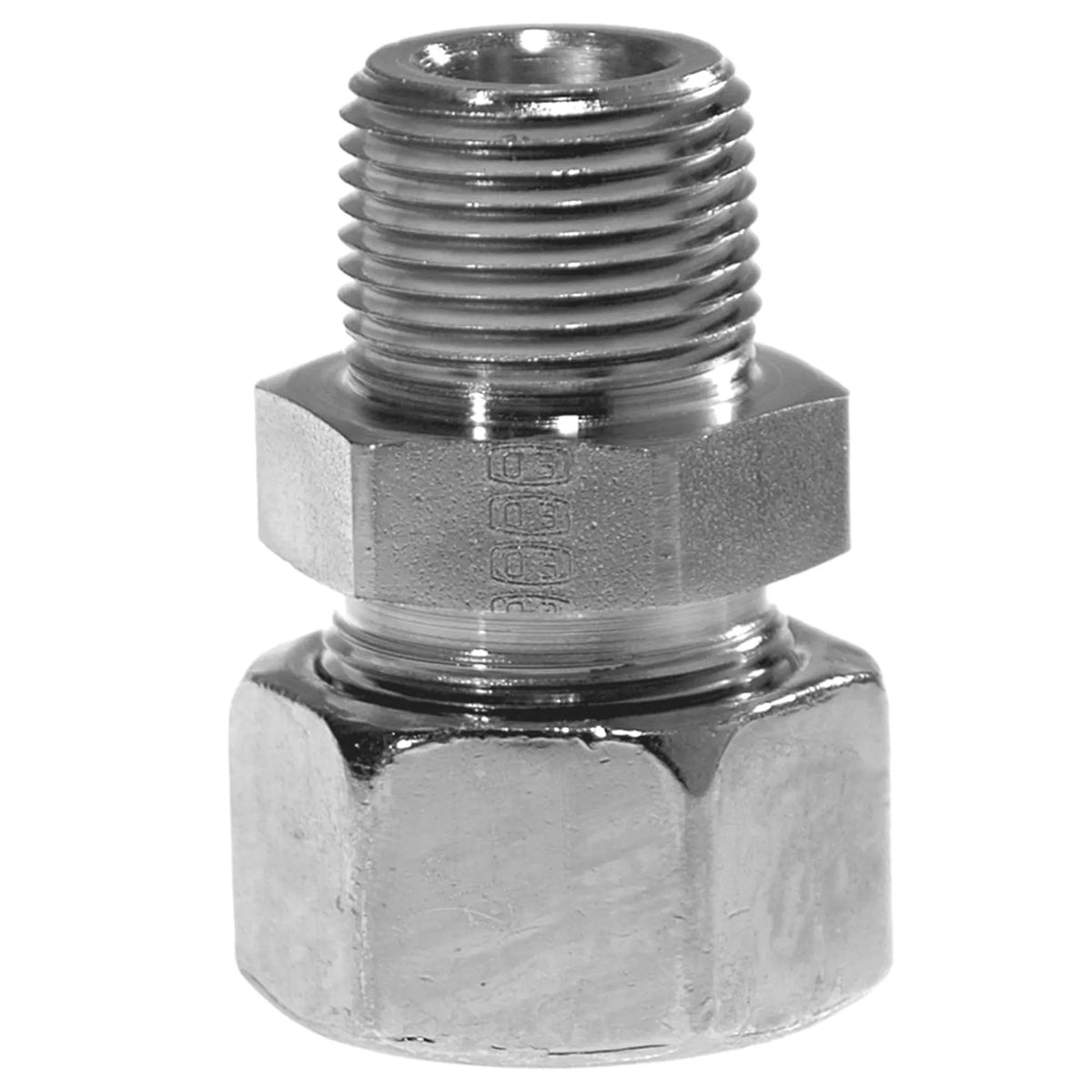

12 mm | DIN | Heavy Class | Steel Male Adaptor | 3/4"-16 UNF | NBR O-Ring Sealed
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Hydraulics, Oilfield, Packaging
Body Material
Steel
Brand
Ermeto
Connection 1 size
12 mm Tube O.D.
Connection 1 type
24° Cone, Male
Connection 2 size
3/4"-16 inch
Connection 2 type
UNF/UN (ISO 11926), Male, UNF-2A Thread
Division
High Pressure Connectors Europe Division
Division (facet only)
High Pressure Connectors Europe Division
Division id
687614
Industry
Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation
Maximum operating pressure
630 bar
Region
EU
Shape
Straight
Specifications met
ISO 11926
Technology
Fluid & Gas Handling
Url
Configuration
Tube to Port
Seal material
NBR
Product type
Hydraulic DIN Fittings
For fluid type
Hydraulic Fluids, Chemicals, Fuels, Gases, Steam
Product style
Stud Fitting
Maximum ambient temperature
120 °C, 248 °F
Maximum fluid temperature
120 °C, 248 °F
Minimum ambient temperature
-40 °C, -40 °F
Minimum fluid temperature
-40 °C, -40 °F
Seal type
O-Ring
No specifications found.
