SKU:GE12L3/8NPT71

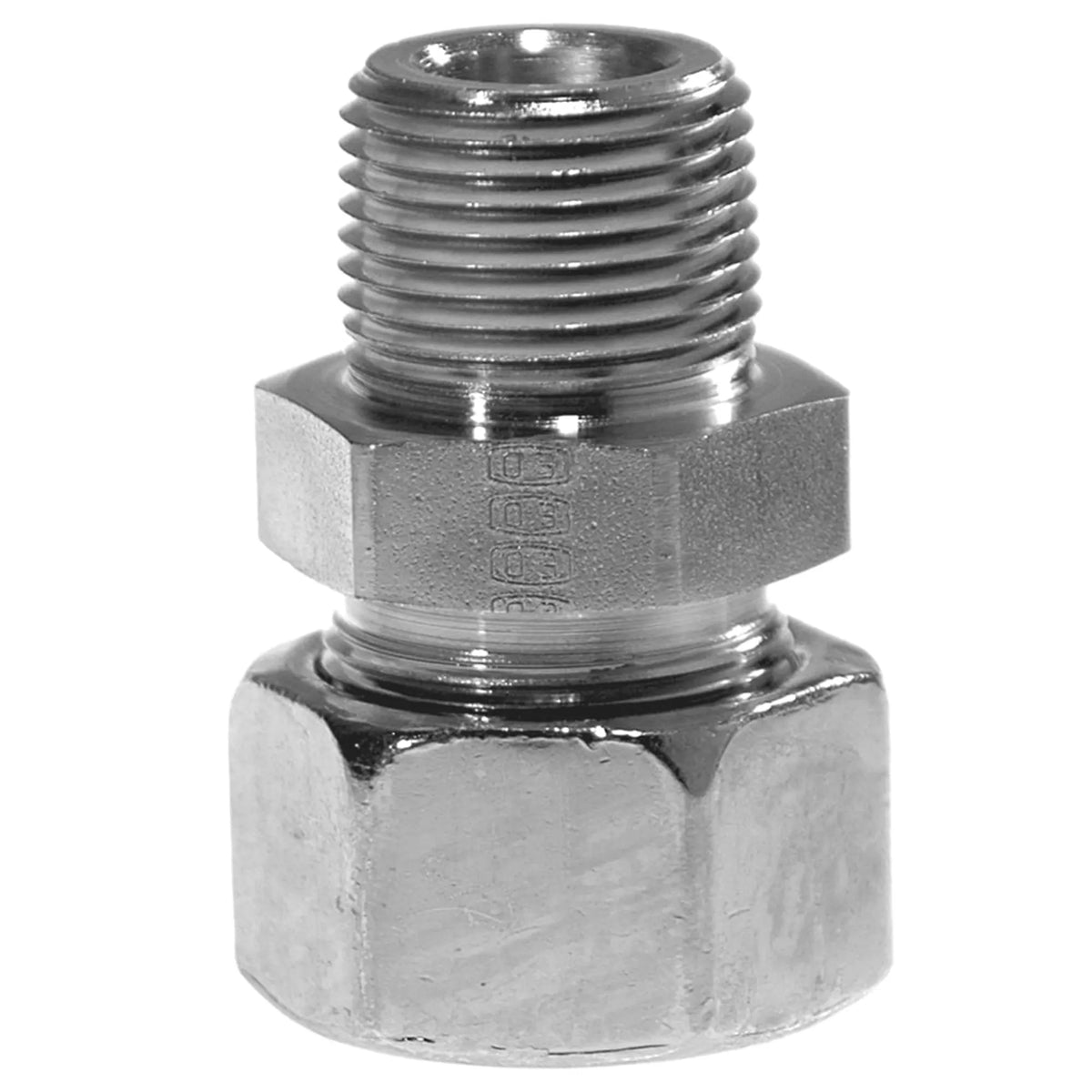

12 mm | DIN | Light Class | Stainless Male Adaptor | 3/8" NPT | Metal-to-Metal Sealed
Availability
+ 3 days
Availability
Inventory
+ 3 days lead time
Express delivery in 1–2 business days is available for the entire quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Hydraulics, Oilfield, Packaging
Body Material
Stainless Steel
Brand
Ermeto
Connection 1 size
12 mm Tube O.D.
Connection 1 type
24° Cone, Male
Connection 2 size
3/8"-18 inch
Connection 2 type
NPT (SAE J476), Male
Division
High Pressure Connectors Europe Division
Division (facet only)
High Pressure Connectors Europe Division
Division id
687614
Industry
Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation
Maximum operating pressure
315 bar
Region
EU
Shape
Straight
Specifications met
SAE J476
Technology
Fluid & Gas Handling
Url
Configuration
Tube to Port
Seal material
Metal
Product type
Hydraulic DIN Fittings
For fluid type
Hydraulic Fluids, Chemicals, Fuels, Gases, Steam
Product style
Stud Fitting
Maximum ambient temperature
400 °C, 752 °F
Maximum fluid temperature
400 °C, 752 °F
Minimum ambient temperature
-60 °C, -76 °F
Minimum fluid temperature
-60 °C, -76 °F
Seal type
Sealing Edge
Accessories included
Pre-assembled with Nut and EO-DPR Cutting Ring
No specifications found.
