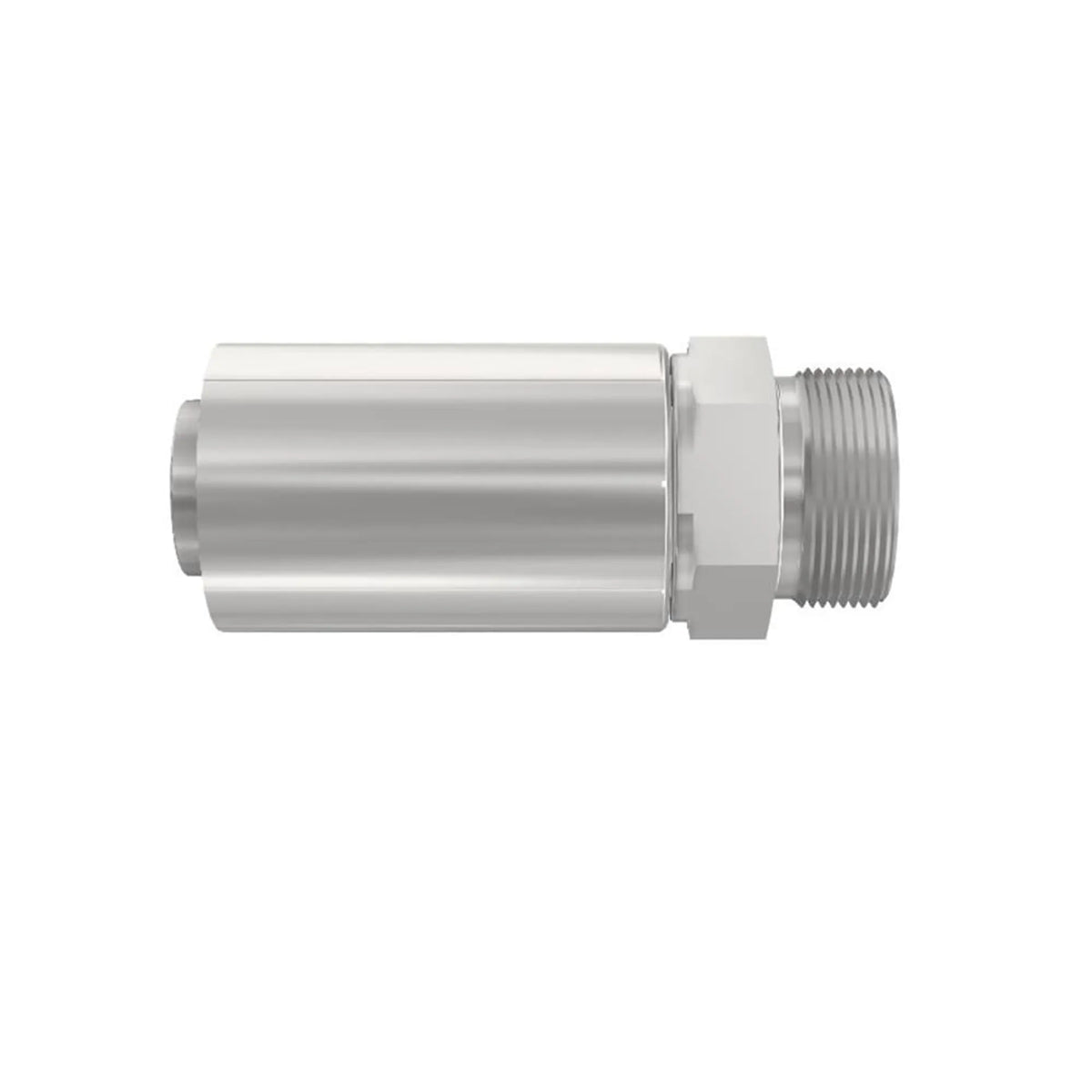

SKU:1D277-25-16
25 mm | DIN | Heavy | Straight Male | Hose 1" | Steel | 420 Bar | 77 Series
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Petroleum Base Hydraulic Fluids, Lubricating Oils
Body Material
Steel
Brand
Parker
Connection 1 size
-16 (Size), 1 inch, 25.4 mm
Connection 1 type
Hose
Connection 2 size
M36x2.0 mm Thread
Connection 2 type
Male, 24° Cone, Rigid, Metric S
Connection length
42 mm (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Fitting length
96 mm (see drawing legend A)
Industry
Industrial Manufacturing Equipment, Off-road Machinery
Maximum operating pressure
42.0 MPa, 420 bar
Port type
DKOS
Product series
77 Series Fittings - HPDE
Region
EU
Shape
Straight
Specifications met
ISO 12151-2-S-S
Technology
Fluid & Gas Handling
Url
Configuration
Hose to Port
Product type
Crimp Fittings No-Skive
For fluid type
Petroleum Hydraulic Fluids (Petroleum Base), Lubricants (Oils)
Hose inside diameter
-16
Port size
M36
No specifications found.
