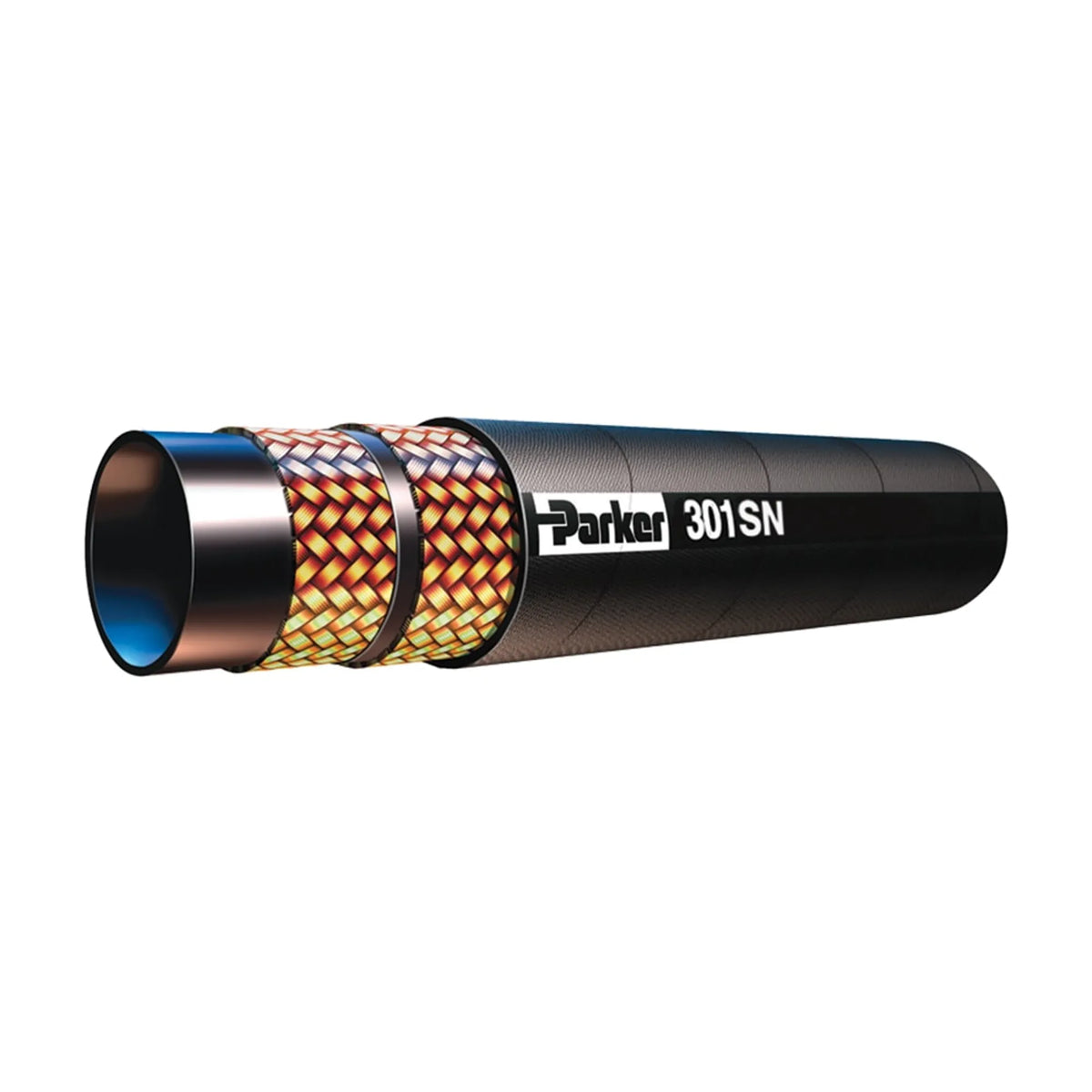

SKU:301SN-8
2SN 12 DIN 20022 HH58113000 01 001,
Availability
+ 48 days
Availability
Inventory
+ 48 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Medium Pressure Hydraulics
Brand
Parker
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Industry
Industrial Manufacturing Equipment, Off-road Machinery
Maximum operating pressure
27.5 MPa, 275 bar, 4000 psi
Product series
Medium Pressure Parkrimp No-Skive Hose 301SN
Region
EU
Specifications met
EN 853, Type 2SN, ISO 1436, Type 2, SAE 100R2, Type AT
Technology
Fluid & Gas Handling
Url
Maximum operating temperature
100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F)
Minimum operating temperature
-40 °C
Weight
0.67 kg/m, 0.45 lb/ft
Product type
Hydraulic Hose
Product style
No-Skive 2TE
Outside diameter
0.874 inch, 22.2 mm
No specifications found.
