SKU:GE30SR1EDOMD71

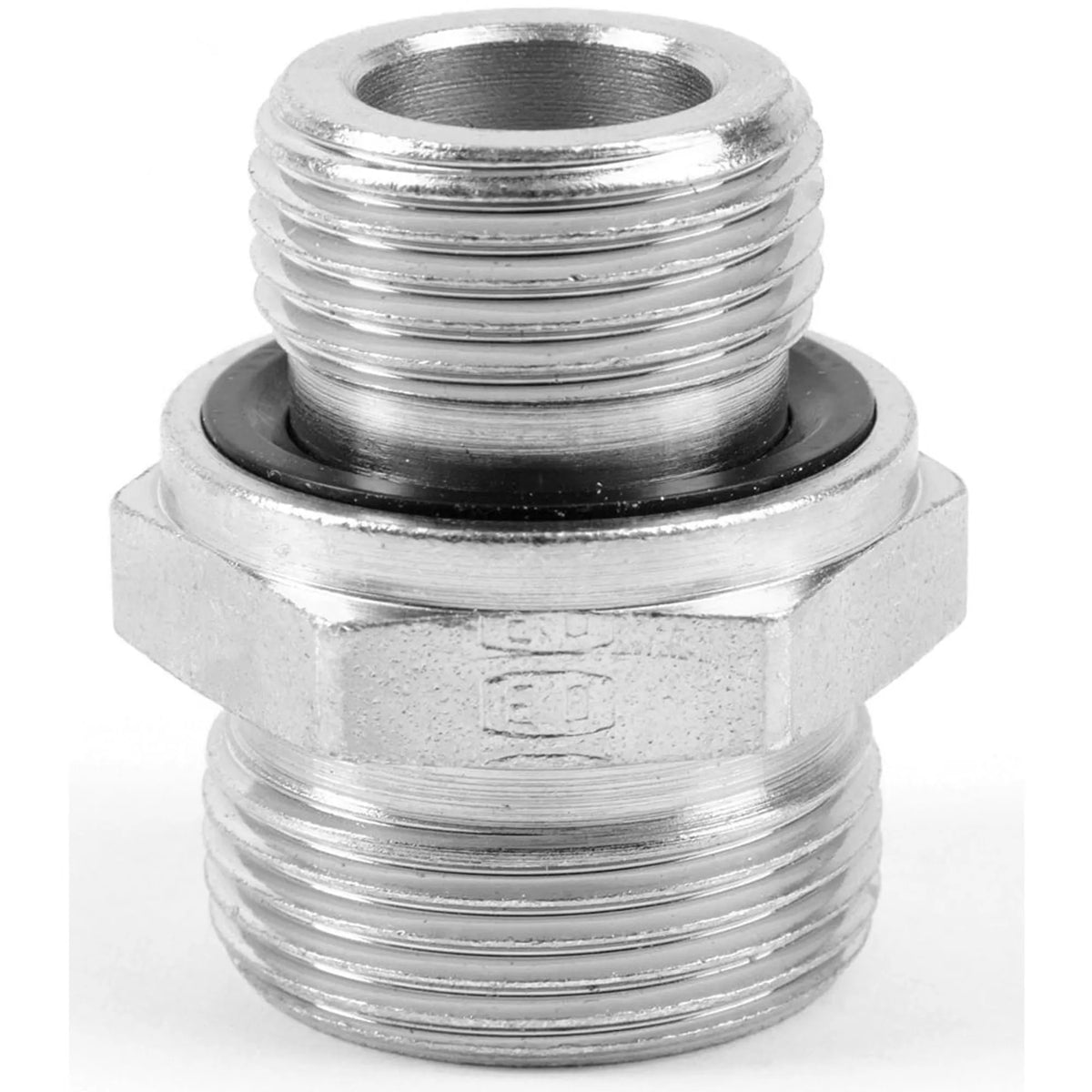

30 mm | DIN | Heavy Class | Stainless Male Adaptor | 1" BSPP | FKM Soft-Sealed
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Hydraulics, Oilfield, Packaging
Body Material
Stainless Steel
Brand
Ermeto
Connection 1 size
30 mm Tube O.D.
Connection 1 type
Male, 24° Cone
Connection 2 size
G 1 A inch Thread
Connection 2 type
BSPP (ISO 1179), Male
Division
High Pressure Connectors Europe Division
Division (facet only)
High Pressure Connectors Europe Division
Division id
687614
Industry
Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation
Maximum operating pressure
400 bar
Region
EU
Shape
Straight
Specifications met
ISO 1179
Technology
Fluid & Gas Handling
Url
Configuration
Tube to Port
Seal material
FKM
Product type
Hydraulic DIN Fittings
For fluid type
Hydraulic Fluids, Chemicals, Fuels, Gases, Steam
Product style
Stud Fitting
Maximum ambient temperature
250 °C, 482 °F
Maximum fluid temperature
250 °C, 482 °F
Minimum ambient temperature
-40 °C, -40 °F
Minimum fluid temperature
-35 °C, -31 °F
Seal type
ED Seal
