SKU:GE04LLRCF

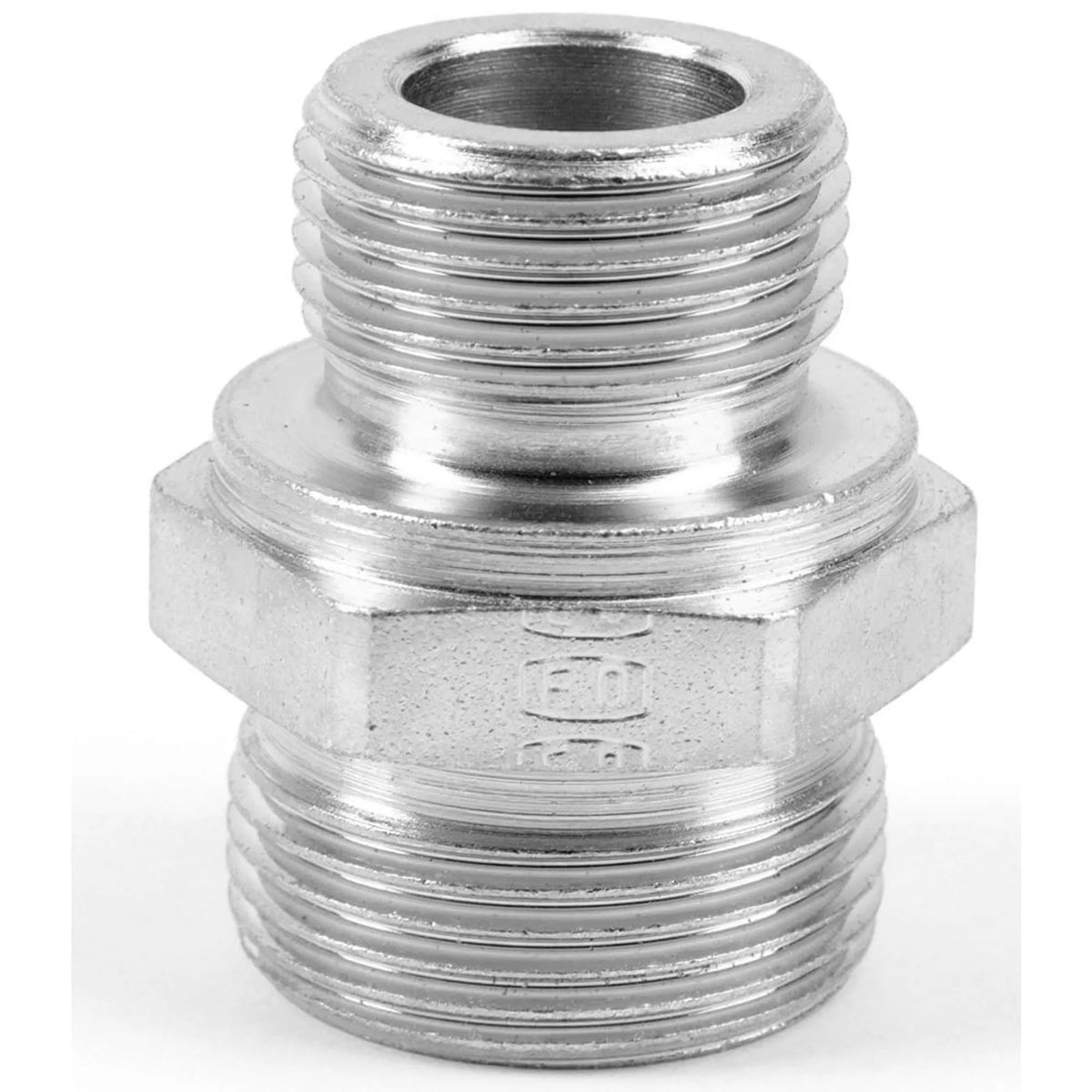

4 mm | DIN | Very Light Class | Steel Male Adaptor | R 1/8" BSPT | Metal-to-Metal Sealed
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Hydraulics, Oilfield, Packaging
Body Material
Steel
Brand
Ermeto
Connection 1 size
4 mm Tube O.D.
Connection 1 type
24° Cone, Male
Connection 2 size
R 1/8 inch Thread
Connection 2 type
BSPT (DIN 3852-2, type C), Male
Division
High Pressure Connectors Europe Division
Division (facet only)
High Pressure Connectors Europe Division
Division id
687614
Industry
Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation
Maximum operating pressure
100 bar
Region
EU
Shape
Straight
Specifications met
DIN 3852
Technology
Fluid & Gas Handling
Url
Configuration
Tube to Port
Seal material
Metal
Product type
Hydraulic DIN Fittings
For fluid type
Hydraulic Fluids, Chemicals, Fuels, Gases, Steam
Product style
Stud Fitting
Maximum ambient temperature
120 °C, 248 °F
Maximum fluid temperature
120 °C, 248 °F
Minimum ambient temperature
-40 °C, -40 °F
Minimum fluid temperature
-40 °C, -40 °F
Seal type
Sealing Edge
Accessories included
Pre-assembled with Nut and EO-D Cutting Ring
