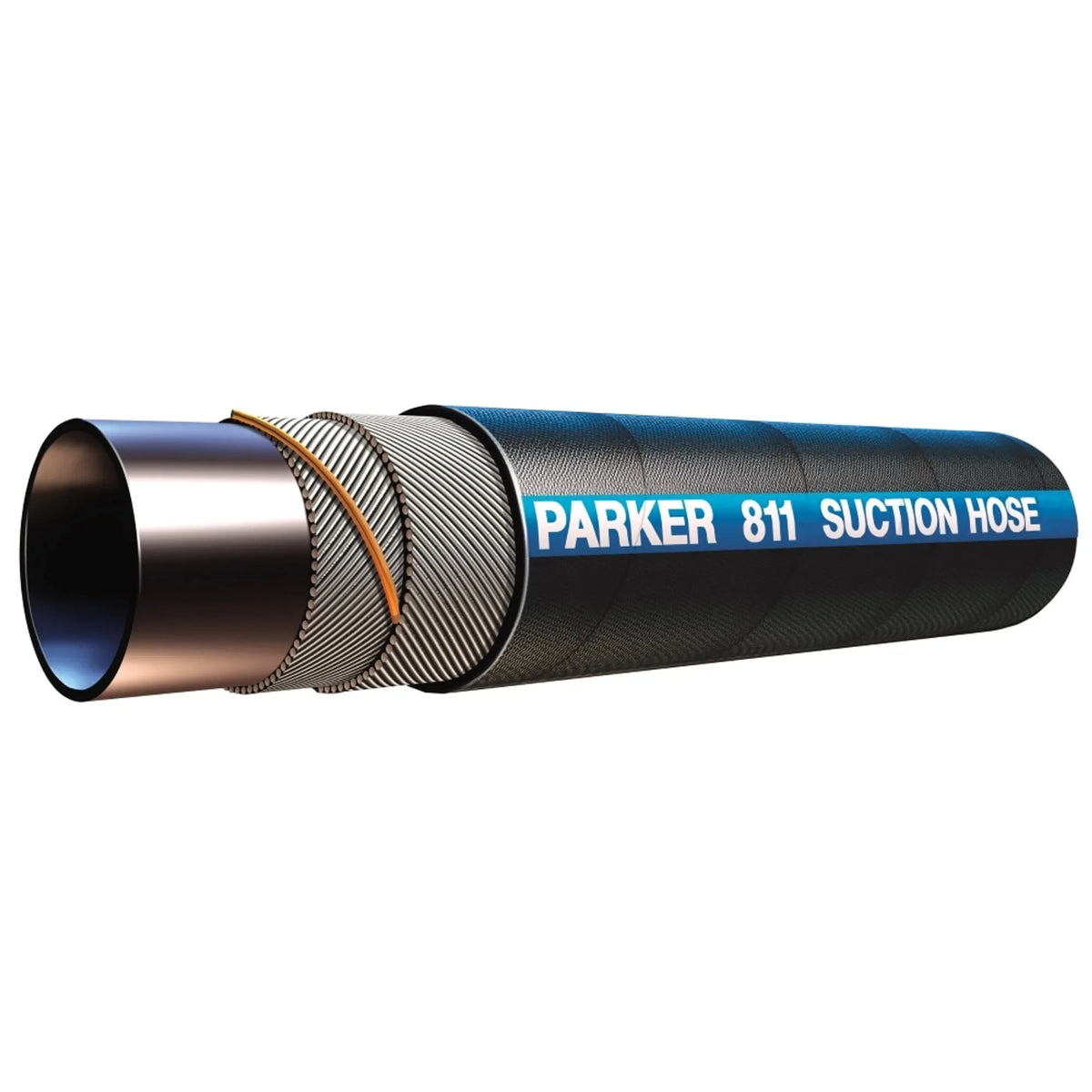

SKU:811-32
811-32 ID 2 SIZE 32 LB$040,
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Lubricating Oils, Petroleum Base Hydraulic Fluids
Division (facet only)
Hose Products Division
Division id
687583
Maximum operating pressure
100 psi (w/ 81/88DB), 0.7 MPa (w/ 81/88DB), 3 bar (w/ 88HC), 0.3 MPa (w/ 88HC), 50 psi (w/ 88HC), 7 bar (w/ 81/88DB)
Product series
811
Region
NA
Specifications met
SAE 100R4, SAE J1943, USCG HF
Url
Maximum operating temperature
100 °C, 212 °F
Minimum operating temperature
-40 °C, -40 °F
Weight
1.87 kg/m, 1.26 lb/ft
Outside diameter
2.500 inch, 63.6 mm
No specifications found.
