SKU:KH3/2-1/271X

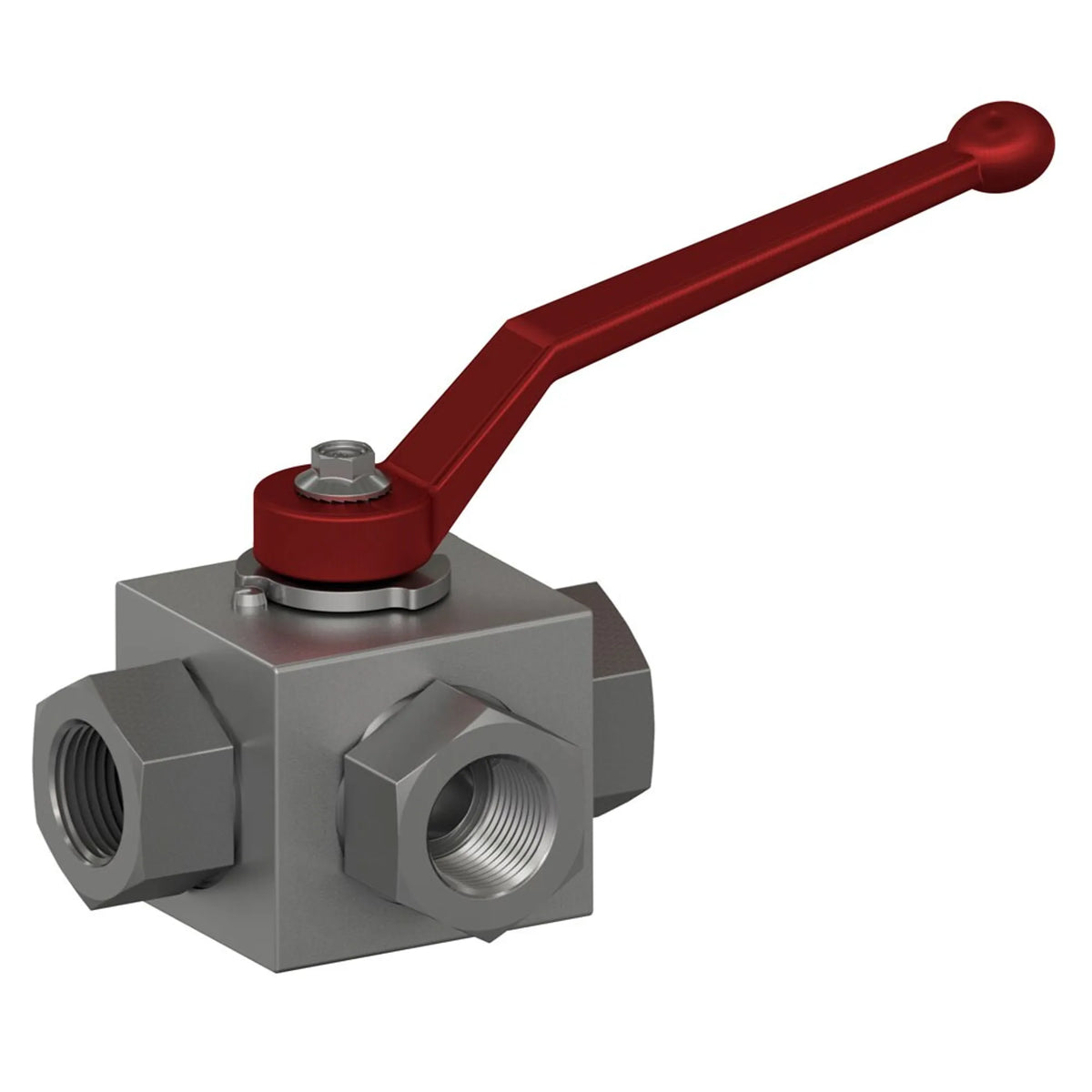

Ball valve | 3-way | L-bored | 1/2" BSP | Stainless Steel | 500 Bar
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Body Material
Steel
Division
High Pressure Connectors Europe Division
Division (facet only)
High Pressure Connectors Europe Division
Division id
687614
Maximum operating pressure
500 bar, 7252 psi
Product series
3-way ball valve
Region
EU
Shape
3-way
Url
Actuation type
Manual
Configuration
3-way BSPP ball valve
Connection size
G 1/2 inch
Connection type
Female BSPP thread (ISO 1179-1)
Maximum operating temperature
100 °C, 212 °F
Minimum operating temperature
-30 °C, -22 °F
Mounting type
Screw
Operation type
Manual
Seal material
NBR
Function
3-way
Product type
Valves
No specifications found.
