SKU:192NX-12-12
BSP 3/4" NUT 60° CONE DN 20 P 2520 / C92N-12 / P 29201
Availability
+ 3 days
Availability
Inventory
+ 3 days lead time
Express delivery in 1–2 business days is available for the entire quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Mobile Hydraulics, Automotive, High Pressure Spray
Body Material
Steel
Brand
Parker
Coating
Chromium 6 Free-plated
Connection 1 size
19.1 mm Hose I.D., -12 (Size), 3/4 inch Hose I.D.
Connection 1 type
Hose
Connection 2 size
3/4"-14 inch Thread
Connection 2 type
Female, BSP Parallel Pipe, 60° Cone, Swivel
Connection length

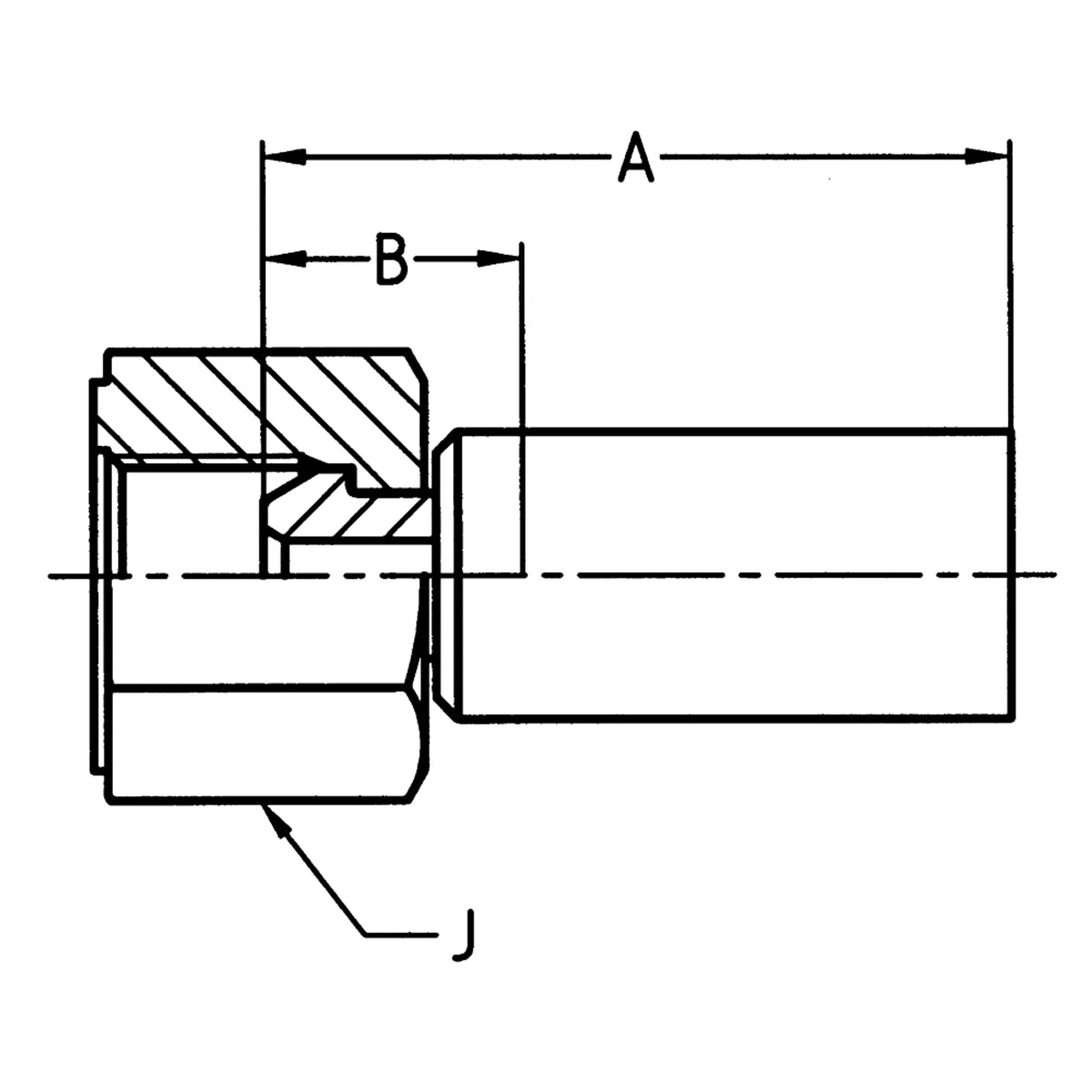

26 mm (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Fitting length
77 mm (see drawing legend A)
Industry
Industrial Manufacturing Equipment
Maximum operating pressure
42.0 MPa, 420 bar
Port type
DKR
Product series
NX Series
Region
EU
Shape
Straight
Specifications met
BS 5200-A
Technology
Fluid & Gas Handling
Url
Configuration
Hose to Port
Product type
Ultra-High Pressure Fittings
For fluid type
Air (General Industrial Air), Water, Mineral Hydraulic Oil
No specifications found.
