SKU:D02B2-0.2V

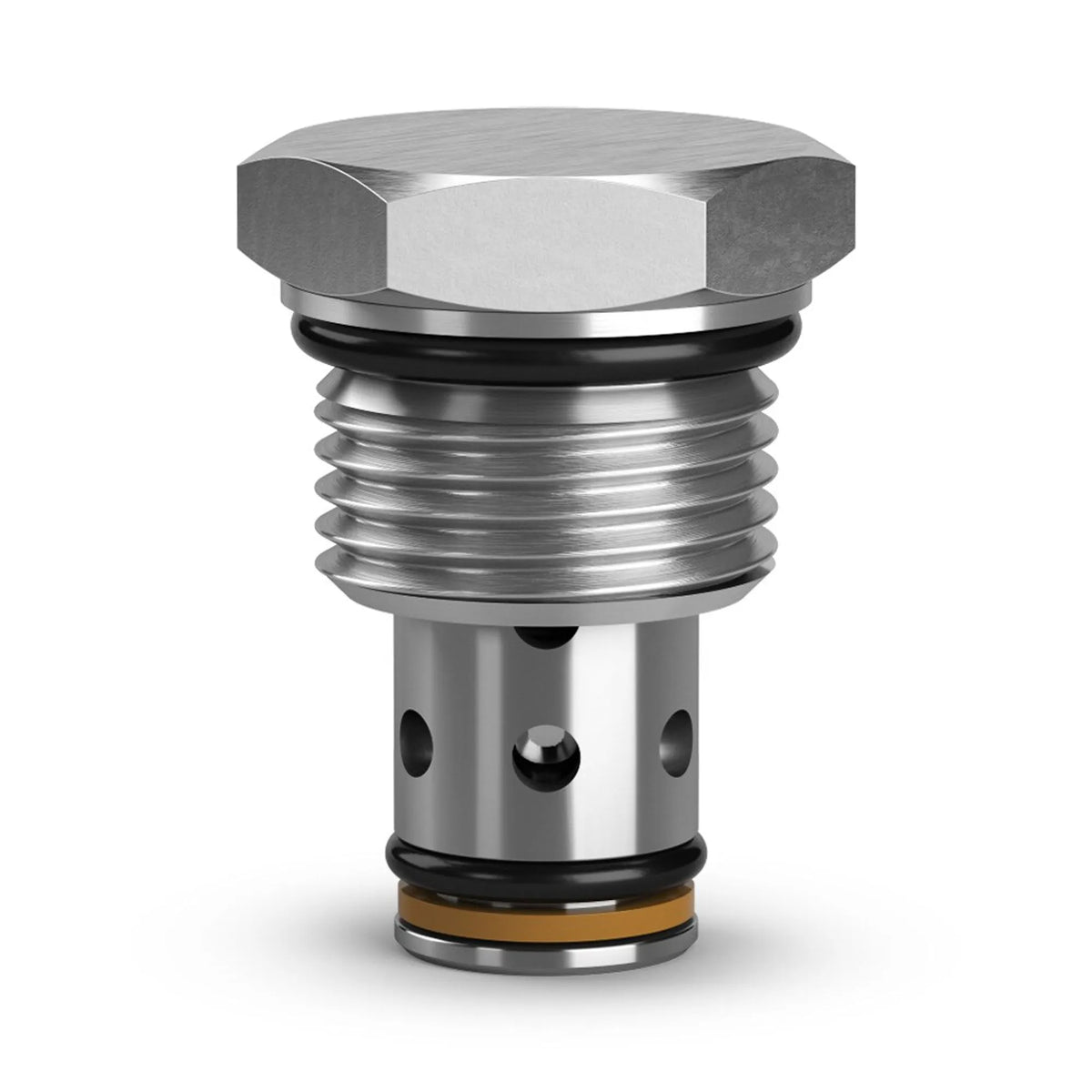

CHECK VALVE
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Division
Hydraulic Valve Systems Division Europe
Division (facet only)
Hydraulic Valve Systems Division
Division id
687505
Maximum operating pressure
420 bar, 6000 psi
Product series
Standard Check Valves
Region
NA
Url
Actuation type
Pressure Sensing
Cracking pressure
0.2 bar, 3 psi
Flow direction
2-1 Checked, 1-2 Free Flow
Maximum flow rate
80 L/min, 21 gal/min
Maximum operating temperature
204 °C, 400 °F
Minimum operating temperature
-26 °C, -15 °F
Seal material
Fluorocarbon
Weight
0.05 kg, 0.11 lb
Flow rate
12 gal/min @ 100 Psi (7 bar) Nominal, 45 L/min @ 100 Psi (7 bar) Nominal
Function
Standard Check
Operating temperature
-26 to 204 °C, -15 to 400 °F
For fluid type
Synthetic Hydraulic Fluids, Mineral-based Hydraulic Fluids
No specifications found.
