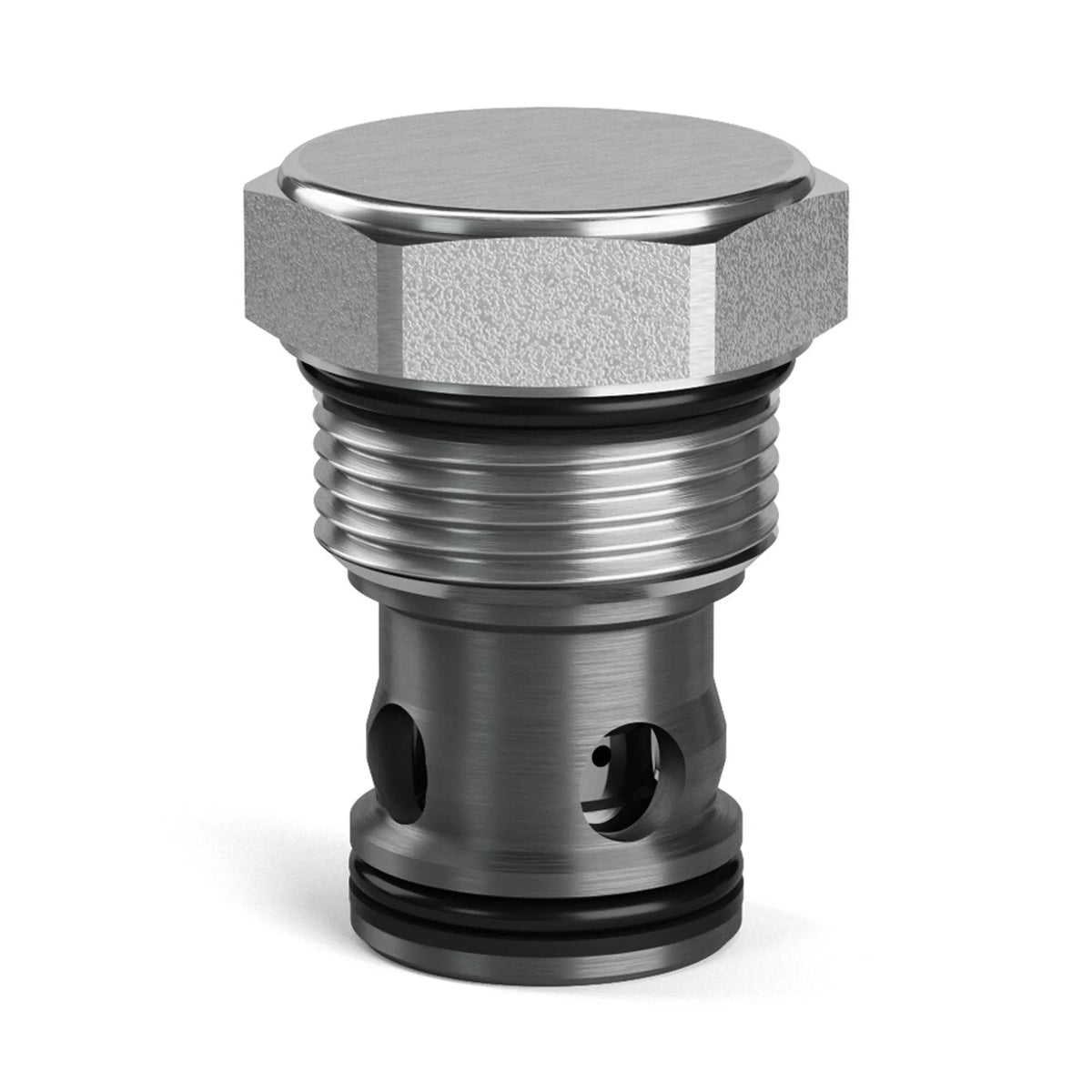

SKU:CVH161P
CVH161P
Availability
+ 53 days
Availability
Inventory
+ 53 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Division
Hydraulic Valve Systems Division
Division (facet only)
Hydraulic Valve Systems Division
Division id
687505
Maximum operating pressure
350 bar, 5000 psi
Product series
Standard Check Valves
Region
NA
Url
Actuation type
Pressure Sensing
Cracking pressure
0.3 bar, 5 psi
Flow direction
1-2 Free Flow, 2-1 Checked
Maximum flow rate
225 L/min, 60 gal/min
Maximum operating temperature
121 °C, 250 °F
Minimum operating temperature
-34 °C, -30 °F
Seal material
Nitrile
Weight
0.27 kg, 0.6 lb
Function
Standard Check
Operating temperature
-34 to 121 °C, -30 to 250 °F
For fluid type
Synthetic Hydraulic Fluids, Mineral-based Hydraulic Fluids
