SKU:D41FBB31FC2NF00

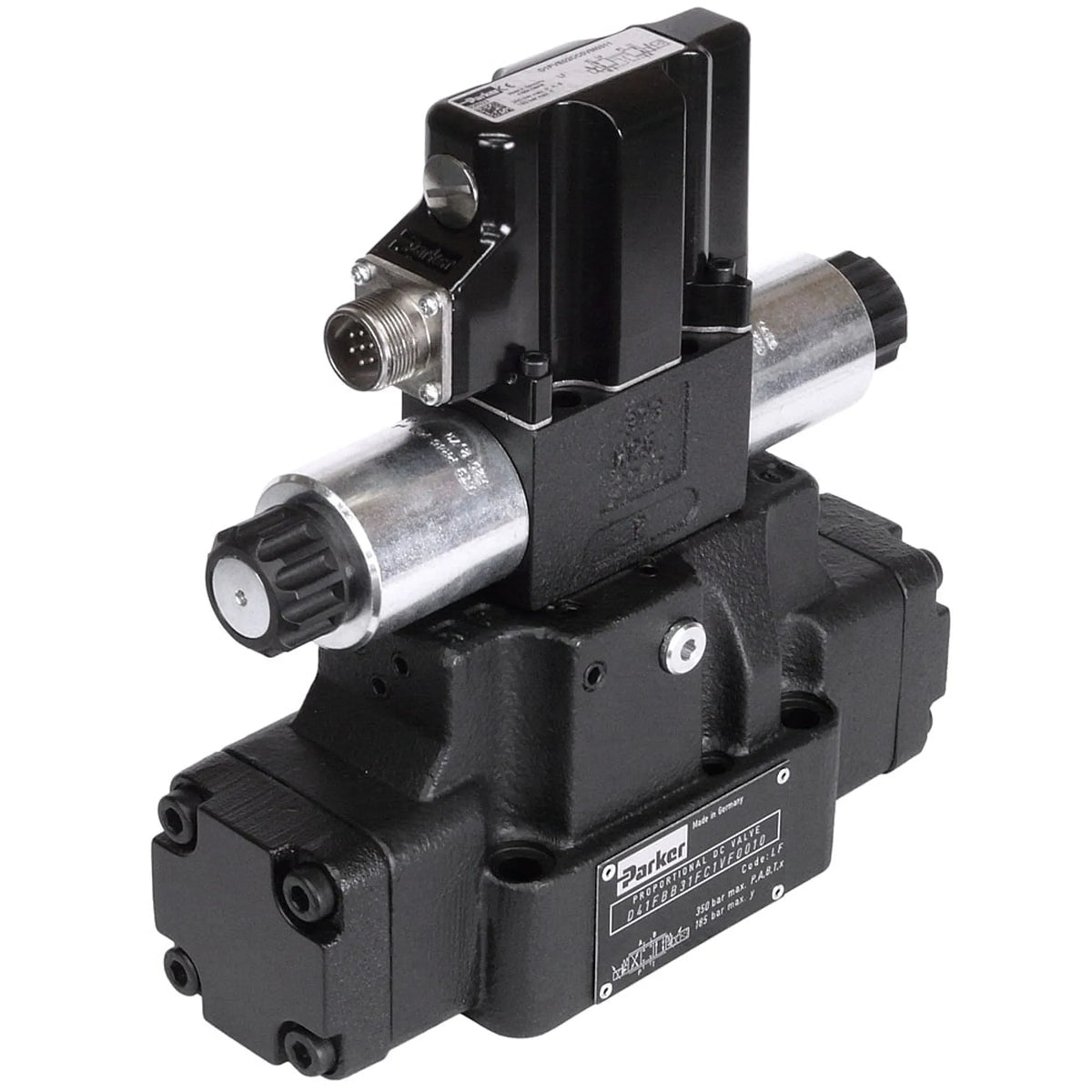

D41FBB31FC2NF0014 PROP. DIRECT CONTROL VALVE
Availability
+ 8 days
Availability
Inventory
+ 8 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Industrial Hydraulic
Body Material
Cast Iron
Brand
Parker
Division
Industrial Systems Division Europe
Division (facet only)
Hydraulic Valve Systems Division Europe
Division id
687478
Maximum operating pressure
350 bar
Region
EU
Technology
Hydraulics
Url
Actuation type
Proportional, Solenoid
Connection type
6 + PE
Flow direction
0 - +10 V = P-B
Maximum operating temperature
60 °C
Minimum operating temperature
-20 °C
Mounting type
Subplate
Operation type
Pilot
Port connection
NG16 / CETOP 07
Seal material
NBR
Weight
12.6 kg
Flow rate
200.0 L/min
Function
3-way
Mounting position
Unrestricted
Power supply voltage
18 to 30 VDC ripple < 5 % eff., surge free
For fluid type
Water-Glycol According to DIN 51524 ... 535, Hydraulic Oil According to DIN 51524 ... 535
Maximum ambient temperature
60 °C
Maximum fluid temperature
60 °C
Minimum ambient temperature
-20 °C
Minimum fluid temperature
-25.0 °C
