SKU:RDM3PT15SVG

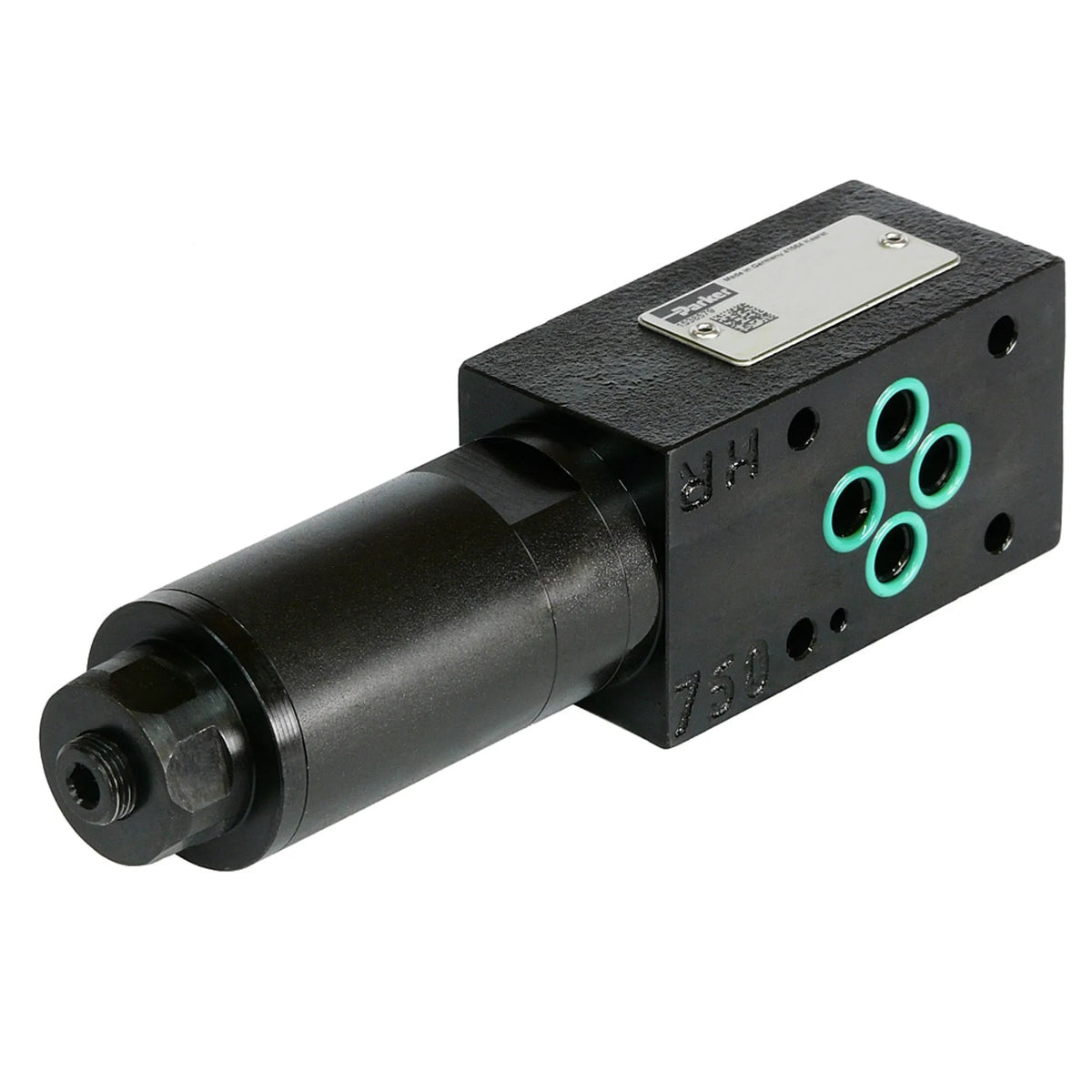

Direct Operated Relief Valve | Sandwich | NG10 | 3-150 bar | Hexagon Socket | 1/4" Gauge Port
Availability
+ 8 days
Availability
Inventory
+ 8 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Body Material
Steel
Division (facet only)
Hydraulic Valve Systems Division Europe
Division id
687478
Maximum operating pressure
315/10 bar
Region
EU
Url
Actuation type
Manually
Maximum flow rate
80 L/min
Maximum operating temperature
60 °C
Minimum operating temperature
-20 °C
Mounting type
Sandwich plate
Operation type
Direct
Port connection
NG10
Seal material
FPM
Weight
2.6 kg
Adjustment mechanism
Hexagon socket
Function
Pressure relieved from P to T
For fluid type
Hydraulic oil
No specifications found.
