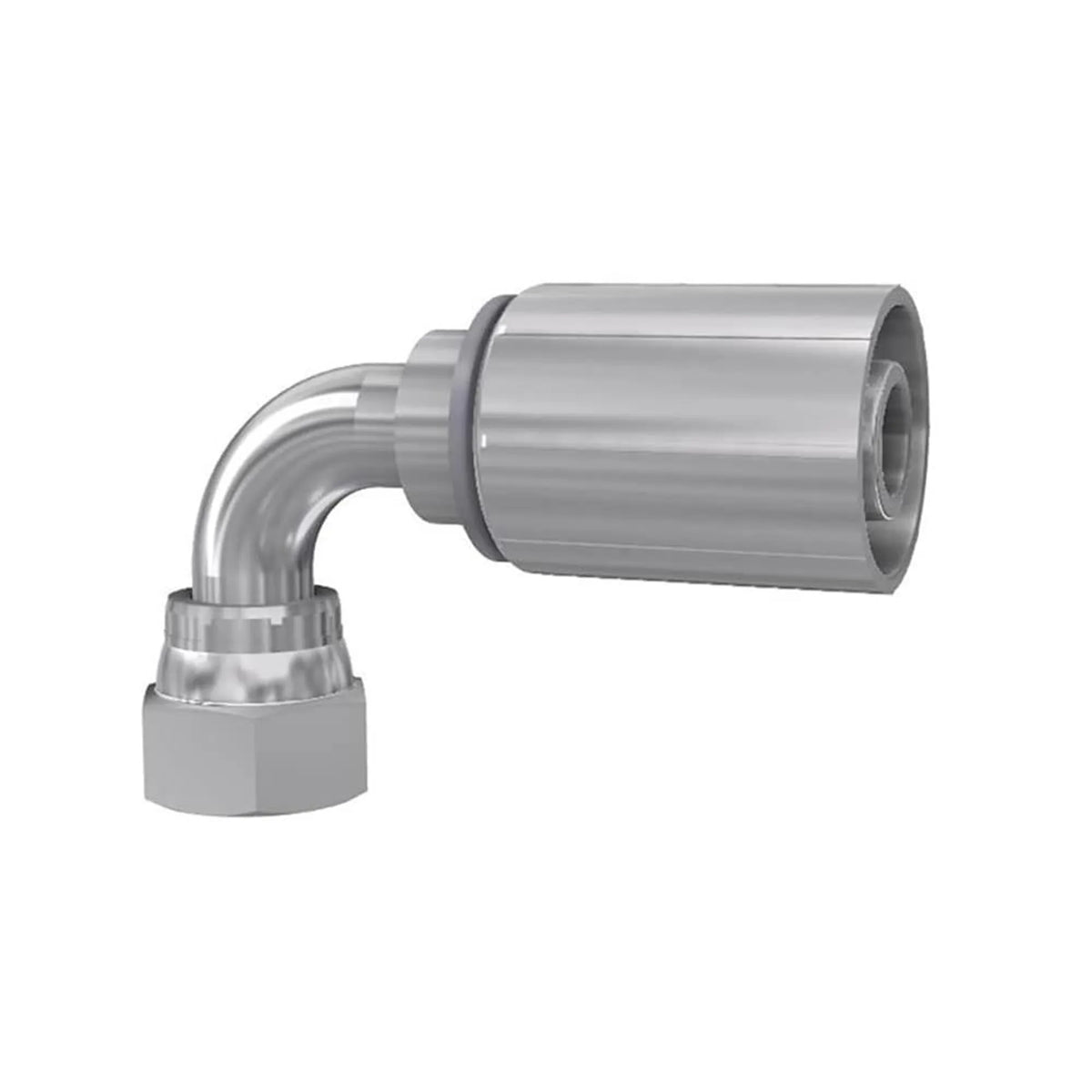

SKU:13W48-10-10
DKJ 90 DN16 E
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Hydraulics
Body Material
Steel
Brand
Parker
Coating
Zinc-nickel
Connection 1 size
-10 Hose I.D., 5/8 inch, 15.9 mm
Connection 1 type
Hose
Connection 2 size
7/8"-14 inch Thread
Connection 2 type
Female, Dual Flare, JIC 37°/45° Flare SAE Swivel
Connection length
39 mm (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Fitting length
64 mm (see drawing legend A)
Industry
Off-road Machinery, Transportation, Industrial Manufacturing Equipment
Maximum operating pressure
35.0 MPa, 350 bar
Port type
DKJ, SAE
Product series
Parkrimp Medium Pressure Fittings 48 Series
Region
EU
Shape
Elbow 90° Short Drop
Specifications met
ISO 12151-5-SWES
Technology
Fluid & Gas Handling
Url
Configuration
Hose to Port
Product type
Hose Fittings
For fluid type
Hydraulic Fluids, Water, Air, Coolants, Mineral Hydraulic Oil
Product style
-
Hose inside diameter
-10
Port size
7/8"
