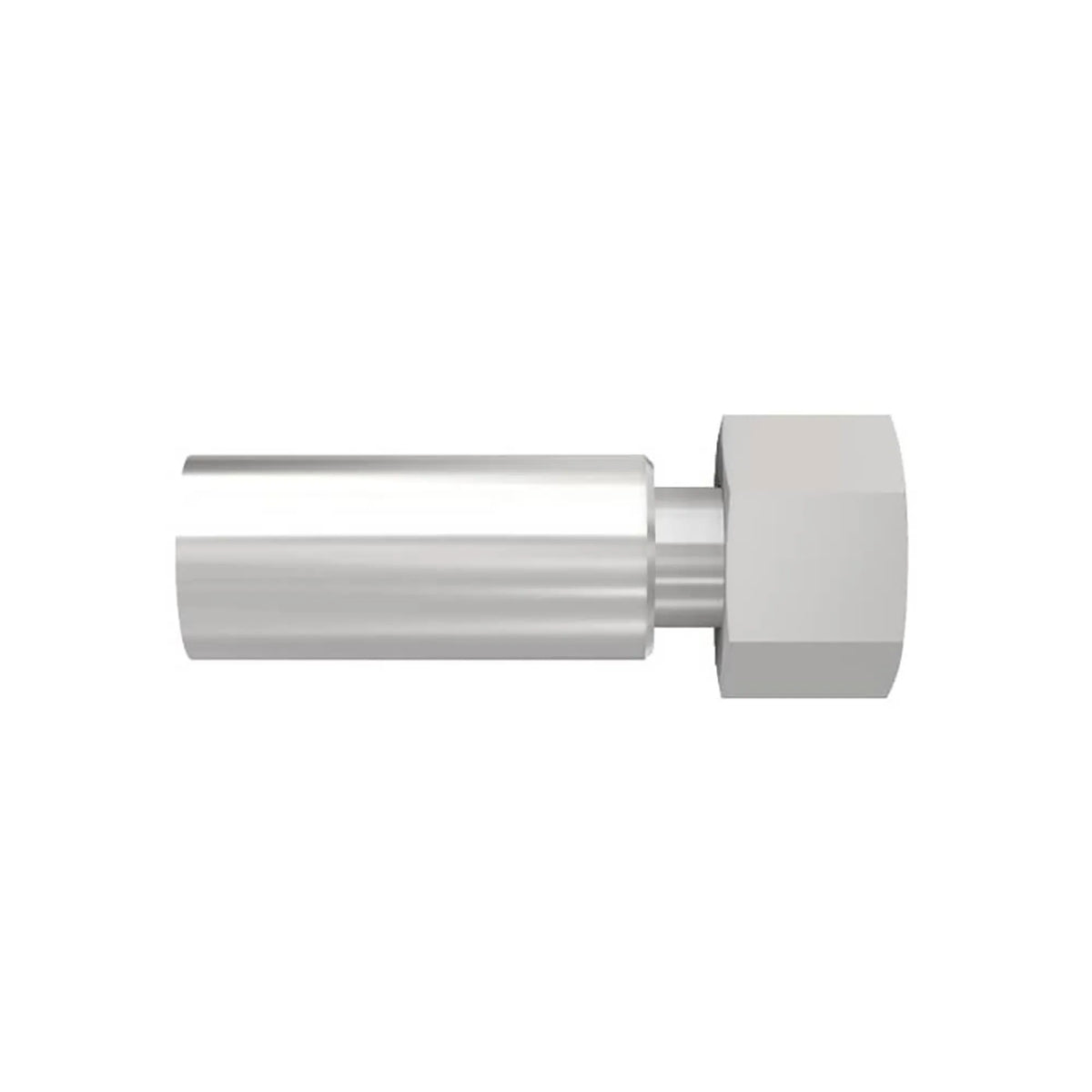

SKU:1C99X-12-06
DKO-S 24° CONE M 20x1.5 P 25102/P 39101/558/53101
Availability
+ 28 days
Availability
Inventory
+ 28 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Mobile Hydraulics, Material Handling, High Pressure Paint Spray
Body Material
Steel
Brand
Parker
Coating
Chromium 6 Free-plated
Connection 1 size
-6 (Size), 9.5 mm Hose I.D., 3/8 inch Hose I.D.
Connection 1 type
Hose
Connection 2 size
M20x1.5 mm Thread
Connection 2 type
Female, 24° Cone (with O-Ring), Swivel, Metric S
Connection length
29 mm (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Fitting length
63 mm (see drawing legend A)
Industry
Industrial Manufacturing Equipment
Maximum operating pressure
63.0 MPa, 630 bar
Port type
DKOS
Product series
9X Series
Region
EU
Shape
Straight
Specifications met
ISO 12151-2-SWS-S
Technology
Fluid & Gas Handling
Url
Configuration
Hose to Port
Product type
Ultra-High Pressure Fittings
For fluid type
Air (General Industrial Air), Water, Mineral Hydraulic Oil
