SKU:DSH101NR

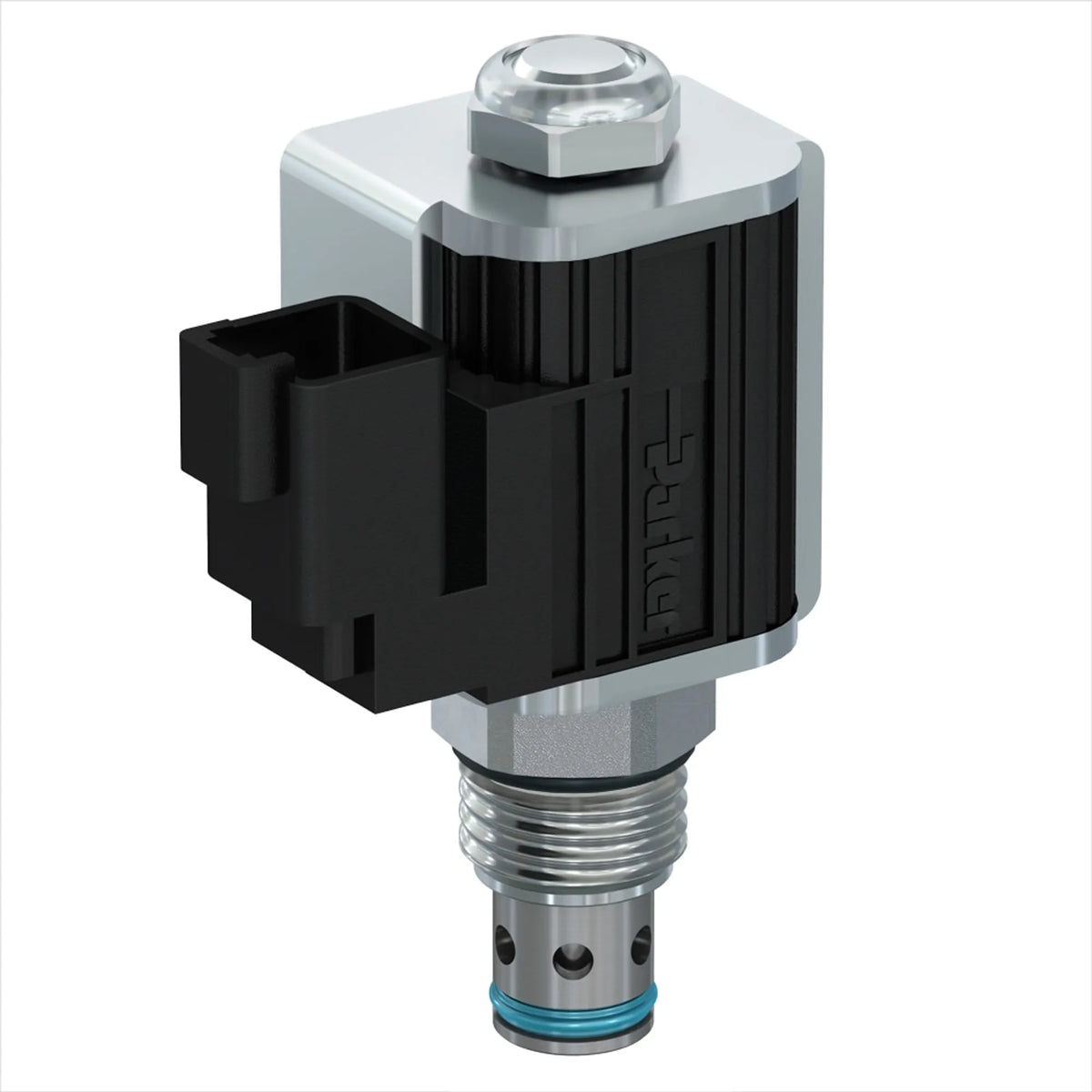

DSH101NR
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Division
Hydraulic Valve Systems Division
Division id
687505
Maximum operating pressure
350 bar, 5000 psi
Product series
2 Way Poppet Type Solenoid Valve
Region
NA
Url
Actuation type
Electrical
Configuration
Normally Open
Flow direction
Side to Nose (2-1)
Maximum flow rate
60 L/min, 15 gal/min
Maximum operating temperature
+93 °C, +200 °F
Minimum operating temperature
-37 °C, -35 °F
Mounting type
Screw in cartridge valve
Operation type
Solenoid operated
Seal material
D-Ring (Standard)
Weight
0.2 kg, 0.41 lb
Flow rate
60 L/min, 15 gal/min
Function
2-way
Operating temperature
-37 to +93 °C, -35 to +200 °F
For fluid type
Mineral-based or synthetic hydraulic fluids
No specifications found.
