SKU:WEE10LMOROMDCF

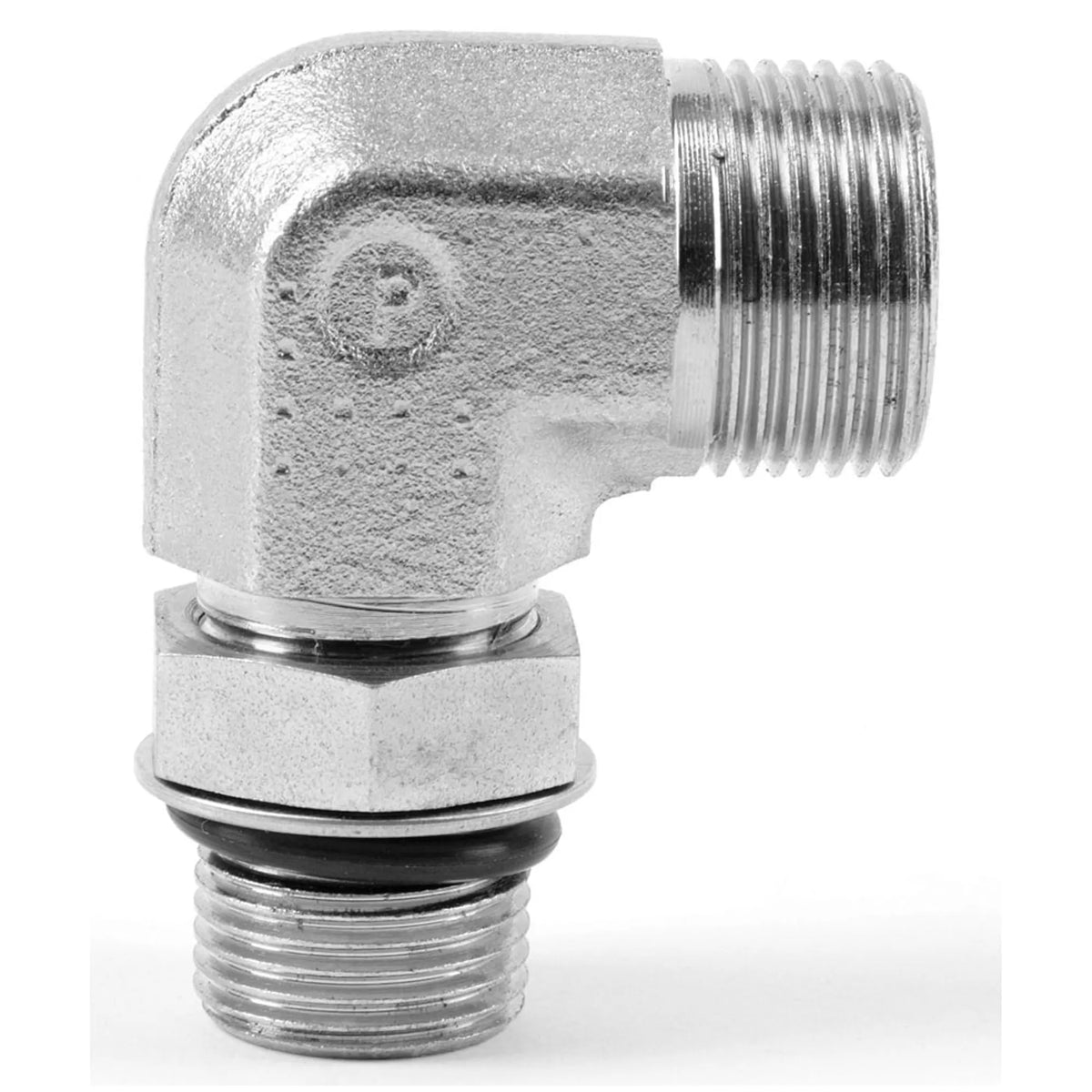

EO Adjustable locknut elbow
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Equipment, Oilfield, Packaging
Body Material
Steel
Brand
Ermeto
Connection 1 size
10 mm Tube O.D.
Connection 1 type
Male, 24° Cone
Connection 2 size
M14x1.5 mm Thread
Connection 2 type
Male, Metric
Division
High Pressure Connectors Europe Division
Division (facet only)
High Pressure Connectors Europe Division
Division id
687614
Industry
Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation
Maximum operating pressure
315 bar
Region
EU
Shape
Elbow 90°
Specifications met
ISO 8434, ISO 6149
Technology
Fluid & Gas Handling
Url
Configuration
Tube to Port
Seal material
NBR
Product type
Hydraulic DIN Fittings
For fluid type
Hydraulic Fluids, Chemicals, Fuels, Gases, Oil & Petroleum, Steam
Product style
Adjustable Position
Maximum ambient temperature
150 °C, 320 °F
Maximum fluid temperature
120 °C, 248 °F
Minimum ambient temperature
-50 °C, -58 °F
Minimum fluid temperature
-50 °C, -58 °F
Seal type
O-Ring
