SKU:GE08LR1/8EDCF

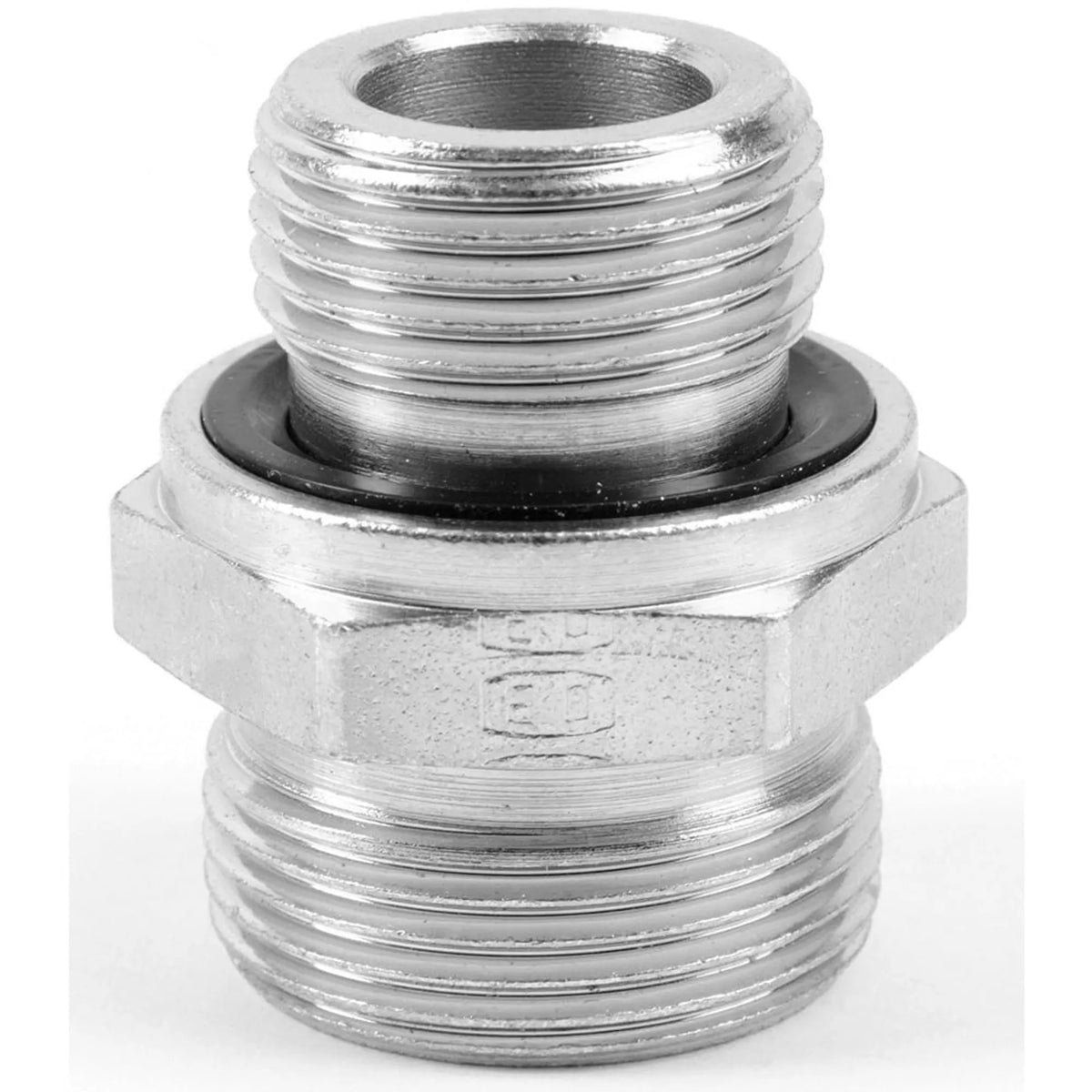

EO Male stud connector
Availability
+ 3 days
Availability
Inventory
+ 3 days lead time
Express delivery in 1–2 business days is available for the entire quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Hydraulics, Oilfield, Packaging
Body Material
Steel
Brand
Ermeto
Connection 1 size
8 mm Tube O.D.
Connection 1 type
24° Cone, Male
Connection 2 size
G 1/8 A inch Thread
Connection 2 type
BSPP (ISO 1179), Male
Division
High Pressure Connectors Europe Division
Division (facet only)
High Pressure Connectors Europe Division
Division id
687614
Industry
Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation
Maximum operating pressure
500 bar
Region
EU
Shape
Straight
Specifications met
ISO 1179
Technology
Fluid & Gas Handling
Url
Configuration
Tube to Port
Seal material
NBR
Product type
Hydraulic DIN Fittings
For fluid type
Hydraulic Fluids, Chemicals, Fuels, Gases, Steam
Product style
Stud Fitting
Maximum ambient temperature
120 °C, 248 °F
Maximum fluid temperature
120 °C, 248 °F
Minimum ambient temperature
-50 °C, -58 °F
Minimum fluid temperature
-50 °C, -58 °F
Seal type
ED Seal
Accessories included
Pre-assembled with Nut and EO-PSR Cutting Ring
