SKU:RHV22LRED3BOMDCF

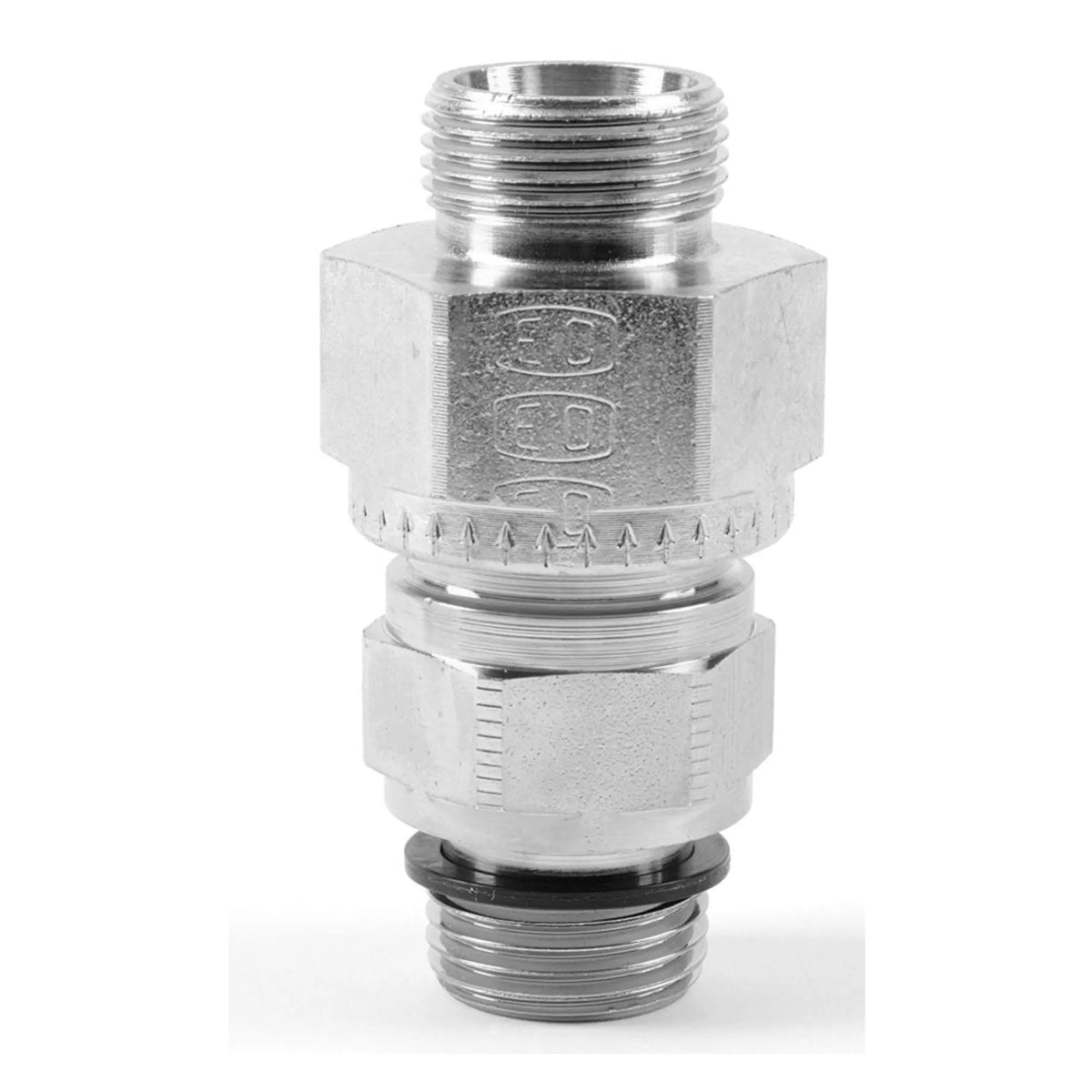

EO Non return valve
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Body Material
Steel
Connection 1 size
22 mm
Connection 1 type
EO 24° cone end
Connection 2 size
G 3/4 A inch
Connection 2 type
Male BSPP thread - ED-seal (ISO 1179)
Division (facet only)
High Pressure Connectors Europe Division
Division id
687614
Maximum operating pressure
250 bar
Region
EU
Url
Actuation type
Mechanical
Cracking pressure
3 bar
Flow direction
Port to Tube
Maximum operating temperature
+120 °C
Minimum operating temperature
-40 °C
Mounting type
Screw
Seal material
NBR
Product type
Non return valve for 1 tube
