SKU:RED35/06LOMD71

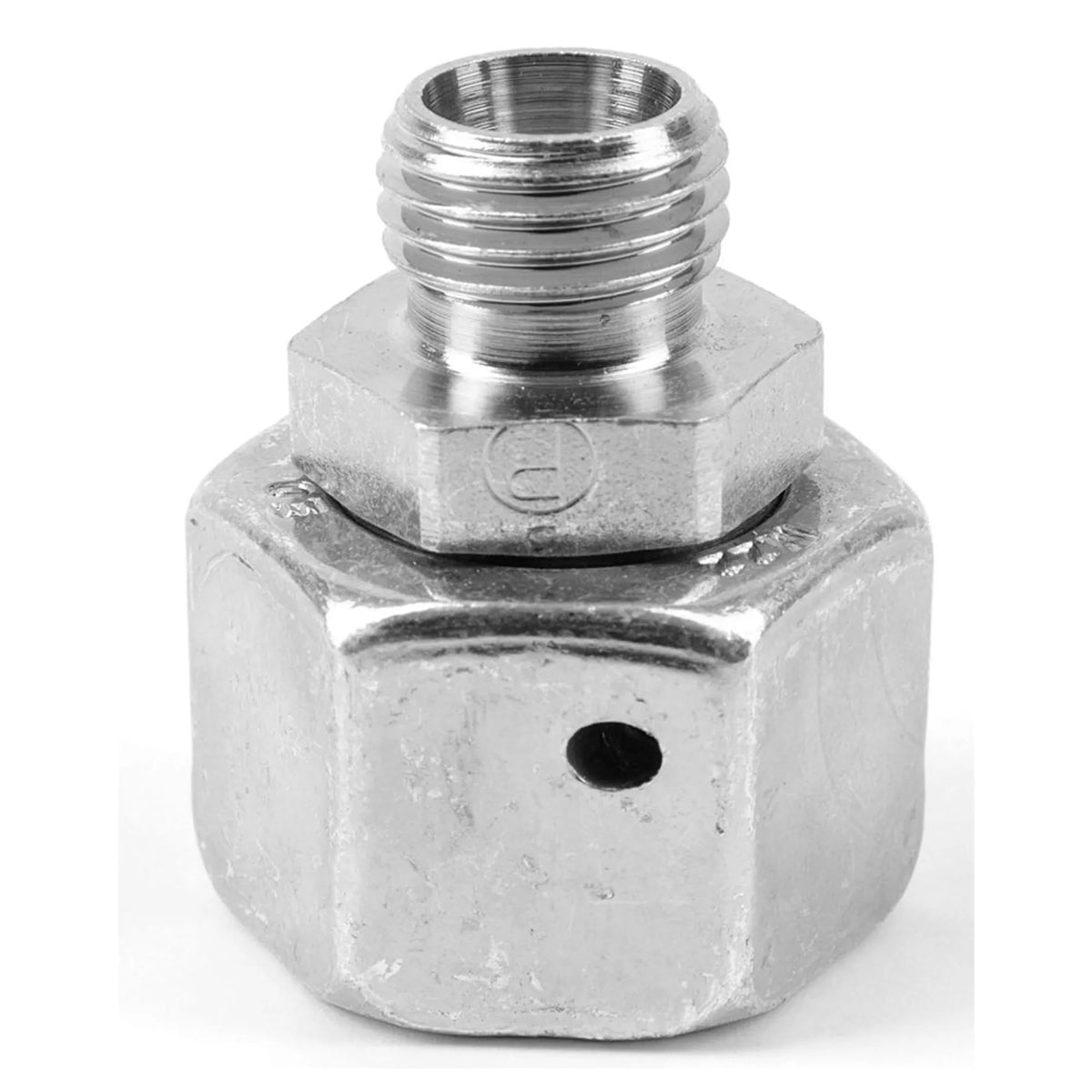

EO Tube end reducer
Availability
+ 28 days
Availability
Inventory
+ 28 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Equipment, Oilfield, Packaging
Body Material
Stainless Steel
Brand
Ermeto
Connection 1 size
35 mm Tube O.D.
Connection 1 type
Male, 24° Cone
Connection 2 size
6 mm Tube O.D.
Connection 2 type
Male, 24° Cone (with O-Ring)
Division
High Pressure Connectors Europe Division
Division (facet only)
High Pressure Connectors Europe Division
Division id
687614
Industry
Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation
Maximum operating pressure
160 bar
Region
EU
Shape
Straight
Specifications met
DIN, ISO 8434
Technology
Fluid & Gas Handling
Url
Configuration
Tube to Swivel
Seal material
FKM
Product type
Hydraulic DIN Fittings
For fluid type
Hydraulic Fluids, Chemicals, Fuels, Gases, Steam
Product style
Adjustable Position
Maximum ambient temperature
400 °C, 752 °F
Maximum fluid temperature
400 °C, 752 °F
Minimum ambient temperature
-60 °C, -76 °F
Minimum fluid temperature
-60 °C, -76 °F
Seal type
O-Ring
No specifications found.
