SKU:3721622

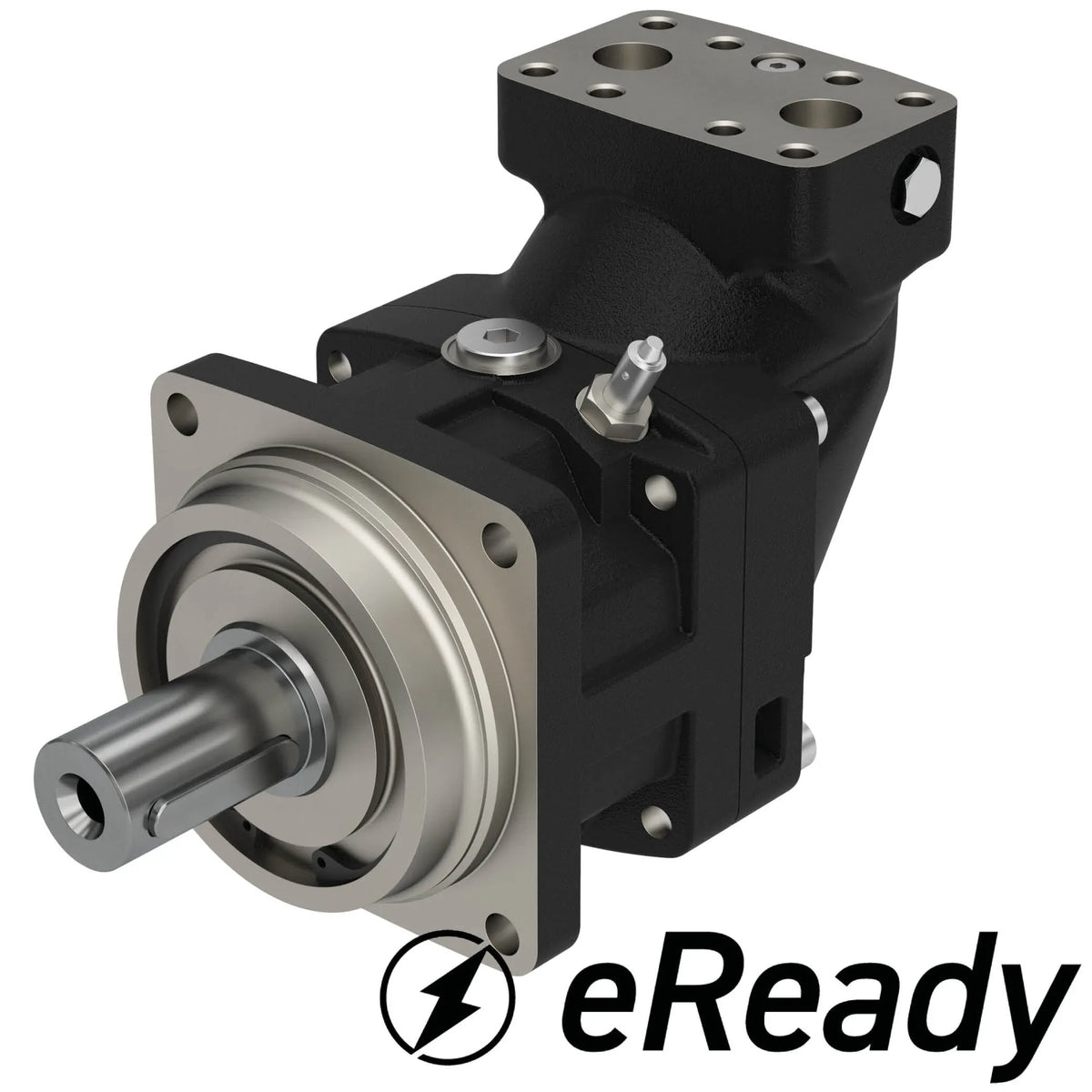

F10-125-AU-IV-D-000-0000-PT
Availability
+ 23 days
Availability
Inventory
+ 23 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Details
Details
Function
Motor
Displacement
125.0 cc / 7.63 cu.in.
Rotation variant
Reversible
Main port position
Rear ports – standard
Main ports
1-5/8"-12 UN
Pilot diameter
160
Mounting flange
ISO 125
Shaft seal
High pressure FPM
Shaft type
Metric spline
Shaft size
W45x2x21x9g M16
Version code
000
Option 1
Standard (no option)
Option 2
Prepared for speed sensor and painted black
Weight
32.8
Weight UOM
KG
Country of origin
SWEDEN
Tariff code
84122981
Technical specification
Technical specification
Division (facet only)
Hydraulic Pump and Motor Europe
Division id
687925
Product series
Bent Axis Fixed Motors - Series F10
Region
EU
Url
Displacement
125 cm³/rev
Weight
32.9 kg
Flow rate
387.5 l/min
No specifications found.
