SKU:KCE47-18-10C

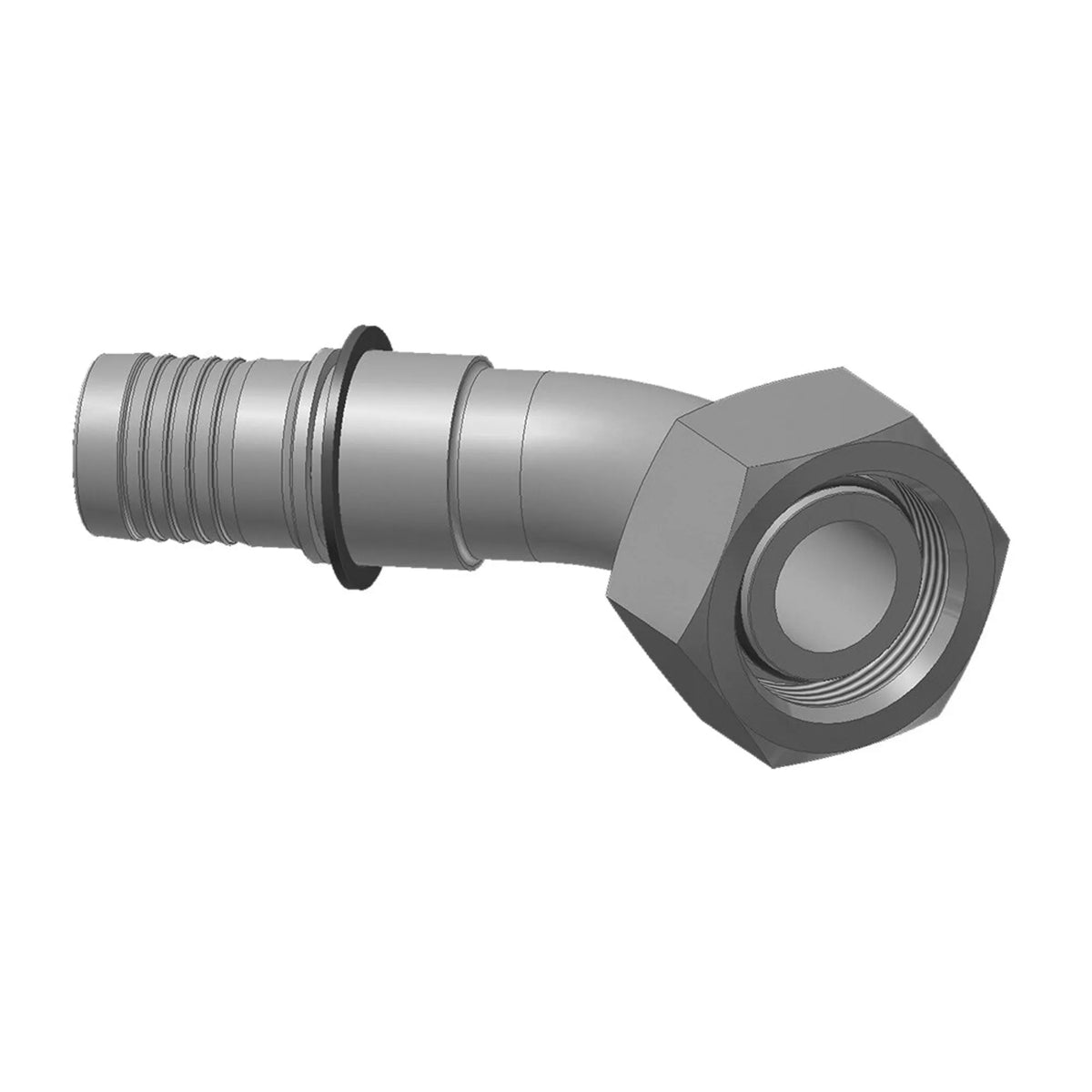

Female Metric Swivel L series O-ring - 45° Elbow
Availability
+ 3 days
Availability
Inventory
+ 3 days lead time
Express delivery in 1–2 business days is available for the entire quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Medium Pressure Hydraulics
Body Material
Stainless Steel
Brand
Parker
Connection 1 size
15.9 mm Hose I.D., 5/8 inch Hose I.D., -10 (Size)
Connection 1 type
Parker Design
Connection 2 size
M26x1.5 Thread
Connection 2 type
Female Metric 24° Light Series with O–Ring Swivel
Connection length
50 mm (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Fitting length
78 mm (see drawing legend A)
Industry
Industrial Manufacturing Equipment, Off-road Machinery, Transportation
Maximum operating pressure
31.5 MPa, 315 bar
Product series
47 Fitting Series
Region
EU
Shape
Elbow 45°
Technology
Fluid & Gas Handling
Url
Configuration
Hose to Port
Maximum operating temperature
105 °C, 221 °F
Minimum operating temperature
-40 °C, -40 °F
Port connection
M26x1.5
Product type
Crimp Fittings No-Skive Two-piece
For fluid type
Hydraulic Fluids on Mineral-oil Basis, Coolants (Water-Glycol), Lubricants (Oils), Air, Water
Product style
Female Metric 24° Light Series with O–Ring Swivel
