SKU:1C943-20-12C

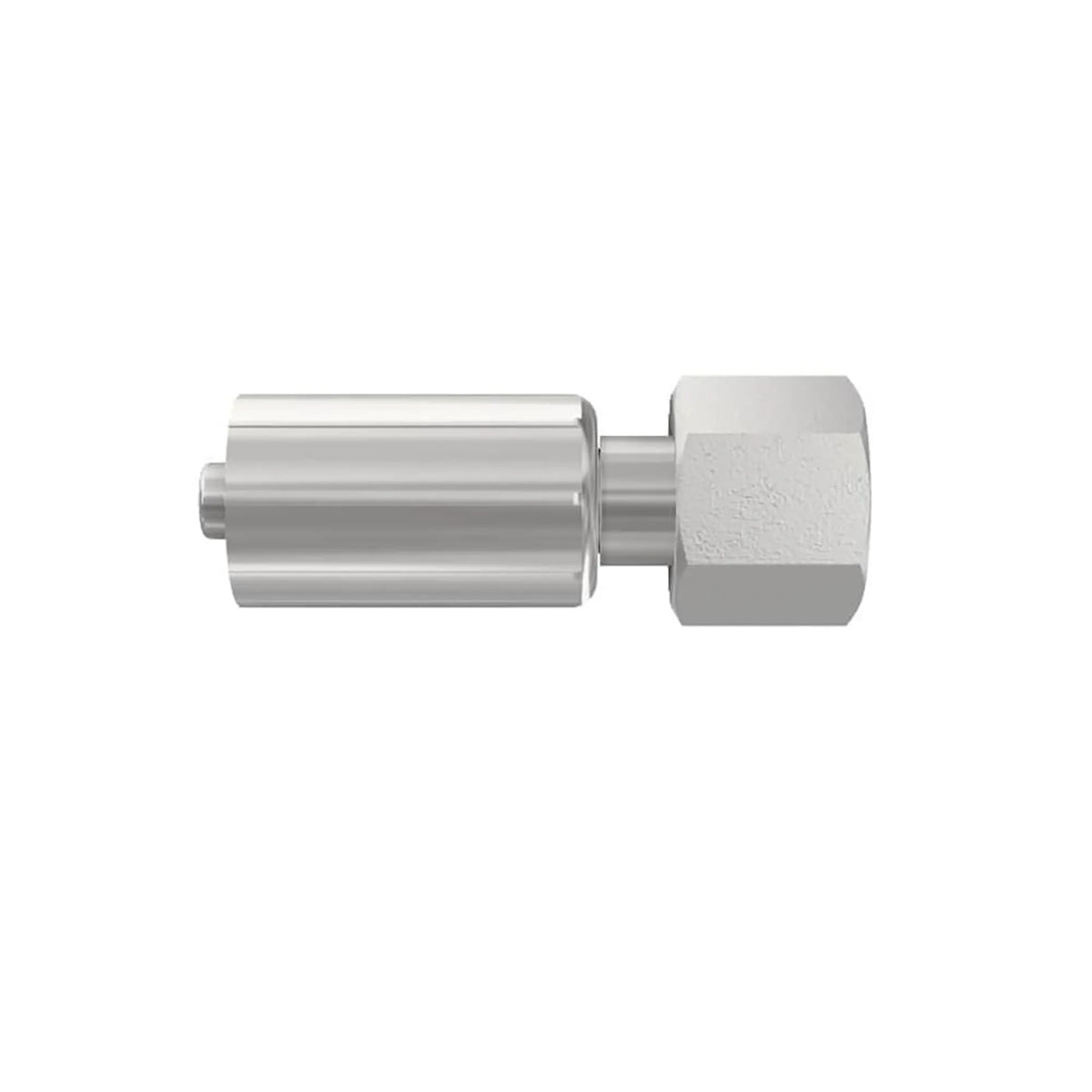

Female Metric Swivel S series O-ring - Straigh
Availability
+ 33 days
Availability
Inventory
+ 33 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
General Industrial, Machine Tools, In-Plant Automotive, On-road Vehicles
Body Material
Stainless Steel
Connection 1 size
-12 (Size), 3/4 inch Hose I.D., 19.1 mm Hose I.D.
Connection 1 type
Hose
Connection 2 size
M30x2.0 mm Thread
Connection 2 type
Female, Metric S, 24° Cone (with O-Ring), Swivel
Connection length
27 mm (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Fitting length
66 mm (see drawing legend A)
Industry
Industrial Manufacturing Equipment, Oil & Gas, Transportation, Off-road Machinery
Port type
DKOS
Product series
43 Series Fittings - HPDE
Region
EU
Shape
Straight
Specifications met
ISO 12151-2-SWS-S
Technology
Fluid & Gas Handling
Url
Configuration
Hose to Port
Product type
Crimp Fittings No-Skive
For fluid type
Lubricants (Oils), Petroleum Hydraulic Fluids (Phosphate-ester), Petroleum Hydraulic Fluids (Petroleum Base)
No specifications found.
