SKU:KJC47-4-4C

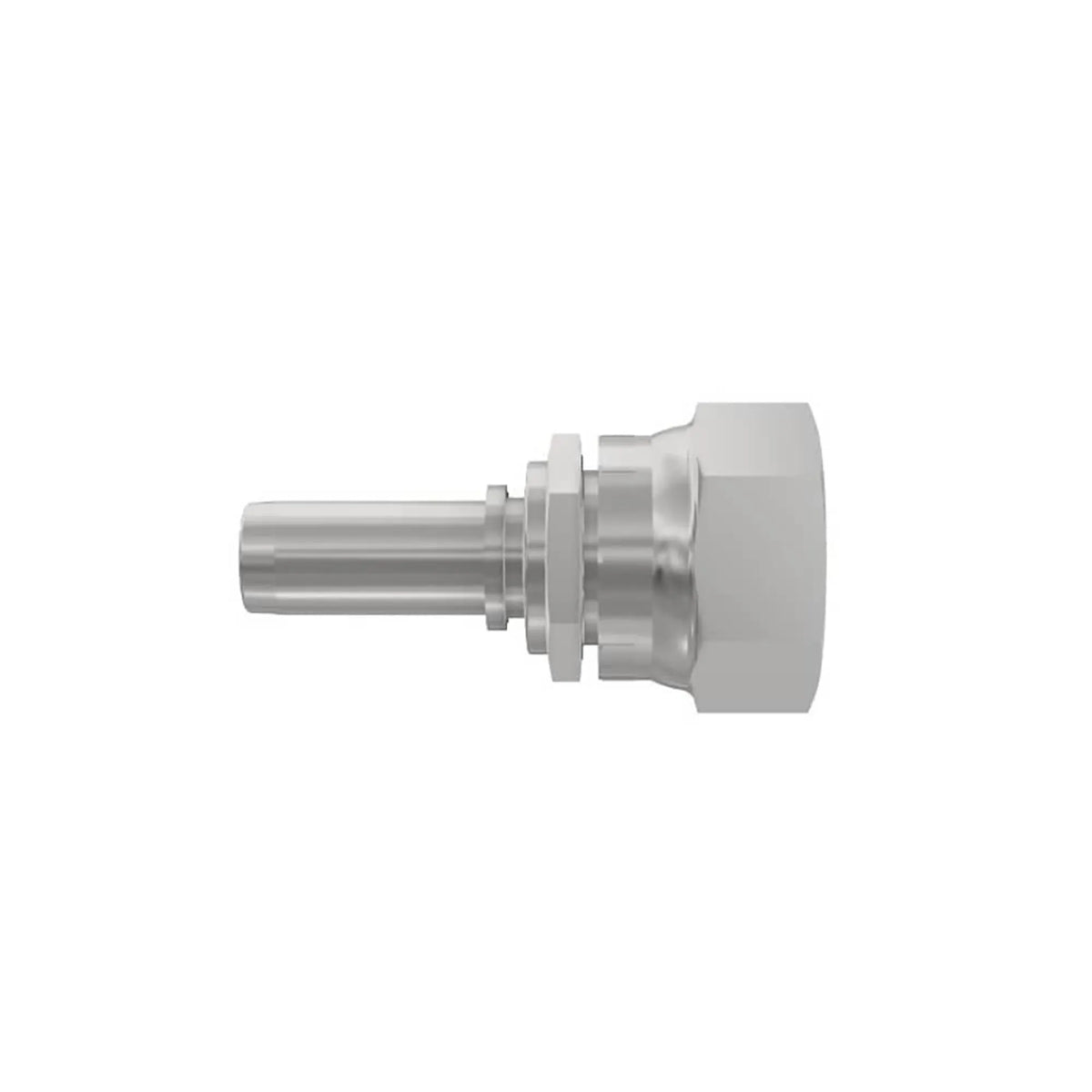

Female ORFS Swivel - straight
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Medium Pressure Hydraulics
Body Material
Stainless Steel
Brand
Parker
Connection 1 size
6.4 mm Hose I.D., -4 (Size), 1/4 inch Hose I.D.
Connection 1 type
Parker Design
Connection 2 size
9/16-18 inch Thread
Connection 2 type
Female ORFS Swivel
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Industry
Industrial Manufacturing Equipment, Off-road Machinery, Transportation
Maximum operating pressure
63.5 MPa, 635 bar
Product series
47 Fitting Series
Region
EU
Shape
Straight - Short
Technology
Fluid & Gas Handling
Url
Configuration
Hose to Port
Maximum operating temperature
105 °C, 221 °F
Minimum operating temperature
-40 °C, -40 °F
Port connection
9/16"-18
Product type
Crimp Fittings No-Skive Two-piece
For fluid type
Hydraulic Fluids on Mineral-oil Basis, Coolants (Water-Glycol), Lubricants (Oils), Air, Water
Product style
Female ORFS Swivel
No specifications found.
