SKU:J04E2ZN

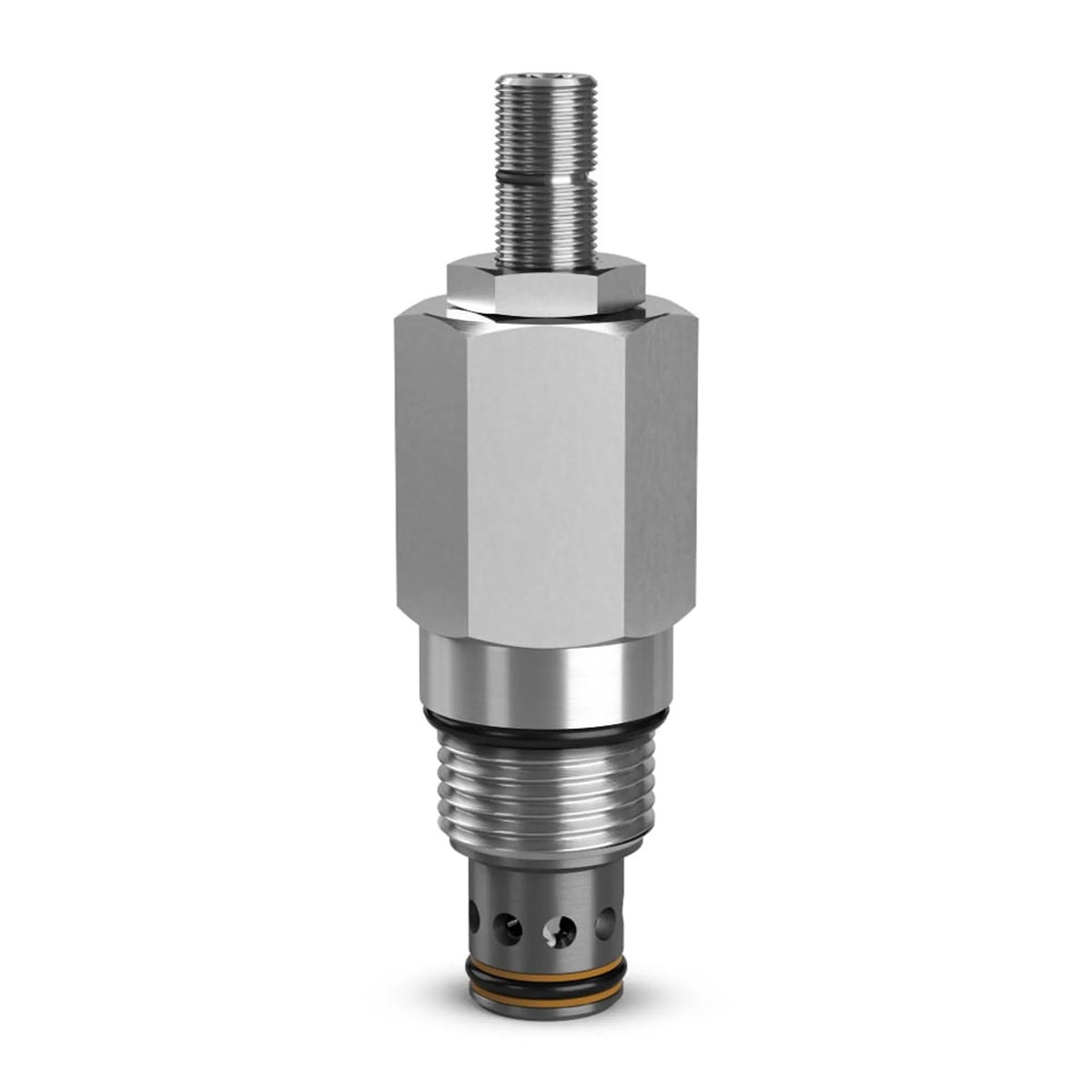

FLOW REGULATING VALVE
Availability
+ 63 days
Availability
Inventory
+ 63 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Division
Hydraulic Valve Systems Division Europe
Division (facet only)
Hydraulic Valve Systems Division
Division id
687505
Maximum operating pressure
420 bar, 6000 psi
Product series
Pressure Compensated Flow Control Valves
Region
NA
Url
Actuation type
Pressure Compensated
Configuration
Reverse Flow
Maximum flow rate
40 L/min, 10.6 gal/min
Maximum operating temperature
+121 °C, +250 °F
Minimum operating temperature
-35 °C, -30 °F
Operation type
Manually operated
Seal material
Nitrile
Weight
0.2 kg, 0.44 lb
Adjustment mechanism
Screw
Flow rate
40 L/min, 10.6 gal/min
Function
Flow Control
Operating temperature
-35 to +121 °C, -30 to +250 °F
For fluid type
Mineral-based or synthetic hydraulic fluids
