SKU:E2B020ZN

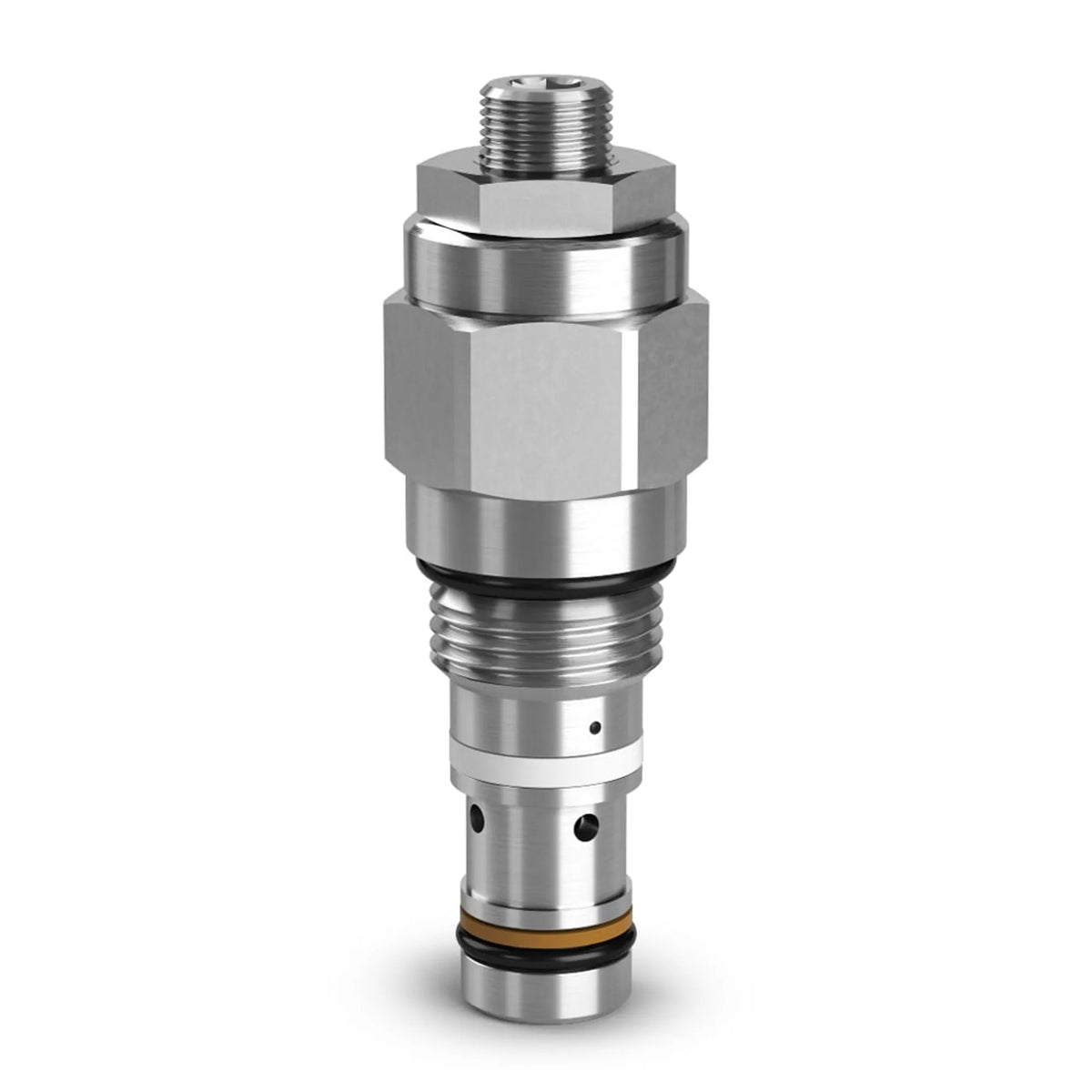

LOAD CONTROL VALVE
Availability
+ 3 days
Availability
Inventory
+ 3 days lead time
Express delivery in 1–2 business days is available for the entire quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Division
Hydraulic Valve Systems Division Europe
Division (facet only)
Hydraulic Valve Systems Division
Division id
687505
Maximum operating pressure
420 bar, 6000 psi
Product series
Standard Pilot Assisted Load Control Valves
Region
NA
Url
Actuation type
Pilot Operated
Flow direction
Cylinder port 1, Valve port 2, Pilot port 3
Maximum flow rate
20 L/min, 5.3 gal/min
Maximum operating temperature
+121 °C, +250 °F
Minimum operating temperature
-34 °C, -30 °F
Mounting type
Threaded Cartridge Valve
Seal material
Nitrile
Weight
0.08 kg, 0.17 lb
Adjustment mechanism
Screw, Screw Adjustment
Flow rate
20 L/min, 5.3 gal/min
Function
Counterbalance Valve
Operating temperature
-34° to +121° °C, -34 to +121 °C, -30° to +250° °F, -30 to +250 °F
For fluid type
Mineral-based or synthetic hydraulic fluids
