SKU:588N-12

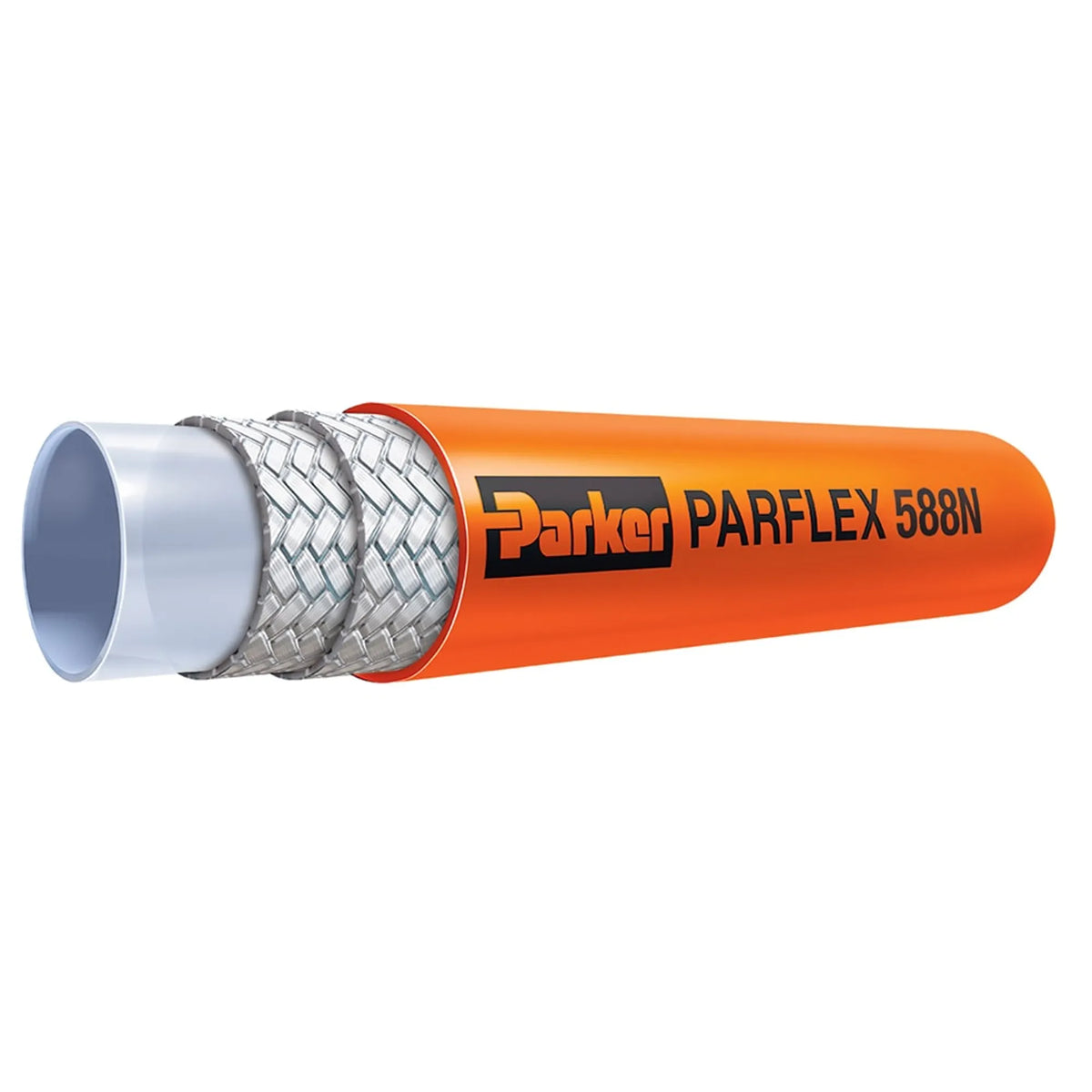

PARFLEX 588N-12 DN20 NON-CONDUCTIVE HOSE
Availability
+ 73 days
Availability
Inventory
+ 73 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Fluid Handling, Industrial, Manufacturing, Hydraulics, Construction Equipment, Forestry, Agriculture Equipment
Division (facet only)
Parflex Division
Division id
687563
Maximum operating pressure
15.5 MPa, 155 bar, 2250 psi
Product series
580N H580N 588N High Pressure Hose
Region
NA
Specifications met
DNV GL, MSHA, SAE 100R8, SAE J517 (for less than 50 micro-amps leakage under 75,000 volts per ft.)
Url
Maximum operating temperature
100 °C, 212 °F
Minimum operating temperature
-40 °C, -40 °F
Weight
0.35 kg/m, 0.23 lb/ft
Product style
Non-Conductive
Outside diameter
1.150 inch, 29.2 mm
No specifications found.
