SKU:AP04G2YR21CN

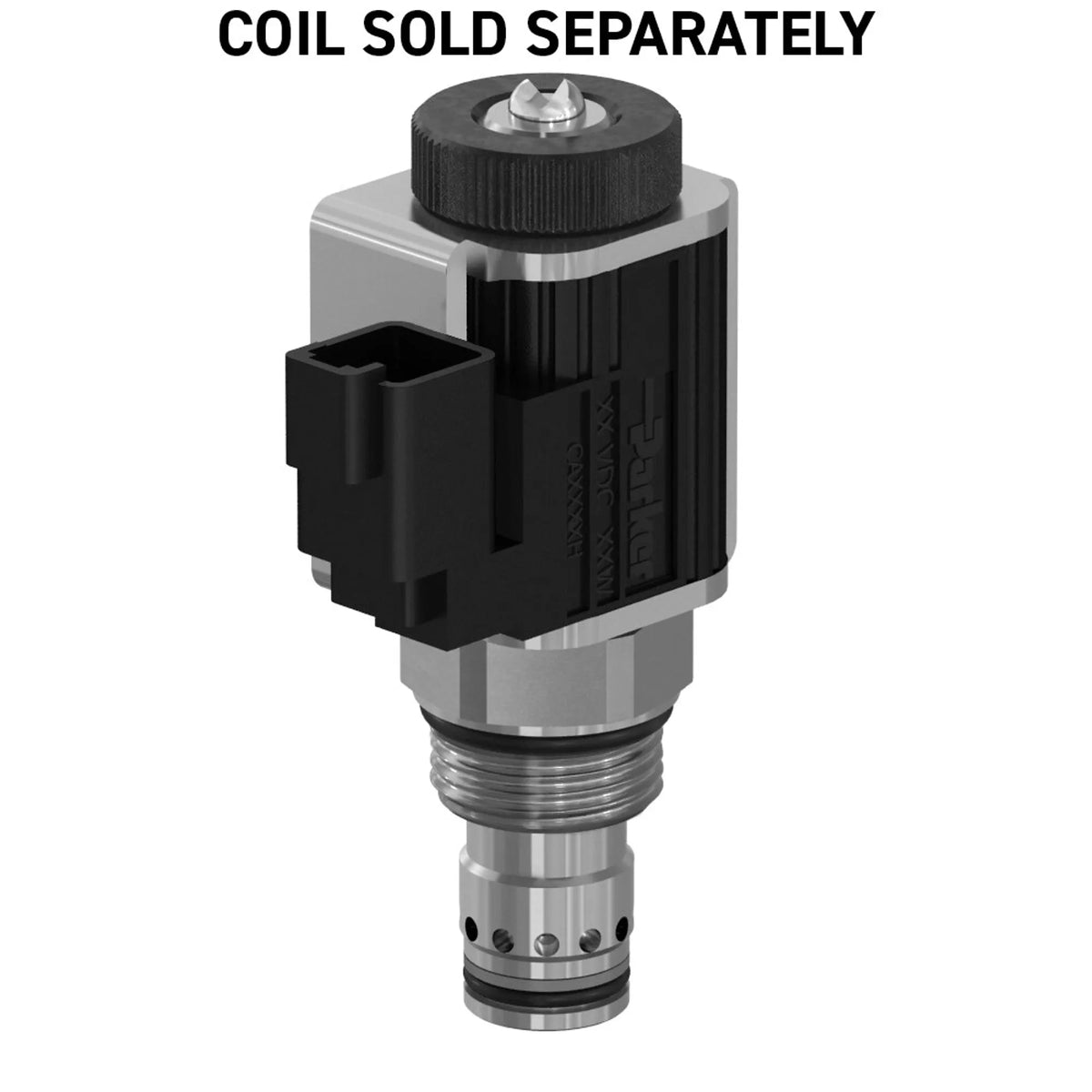

PDV:AP04G2YR21CN PROP. RELIEF VALVE C10
Availability
+ 3 days
Availability
Inventory
+ 3 days lead time
Express delivery in 1–2 business days is available for the entire quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Division
Hydraulic Valve Systems Division
Division (facet only)
Hydraulic Valve Systems Division
Division id
687505
Maximum operating pressure
210 bar, 3000 psi
Product series
Pressure Relieving Proportional Valve
Region
NA
Url
Actuation type
Electrical
Configuration
Decreasing Pressure/Increasing Current
Flow direction
Nose to Side (1-2)
Maximum flow rate
95 L/min, 25 gal/min
Maximum operating temperature
121 °C, 250 °F
Minimum operating temperature
-34 °C, -30 °F
Mounting type
Screw-in Cartridge
Operation type
Solenoid Operated
Seal material
Nitrile
Weight
0.14 kg, 0.3 lb
Flow rate
95 L/min, 25 gal/min
Function
Proportional Pressure Relief
Operating temperature
-34 to 121 °C, -30 to 250 °F
For fluid type
Synthetic Hydraulic Fluids, Mineral-based Hydraulic Fluids
