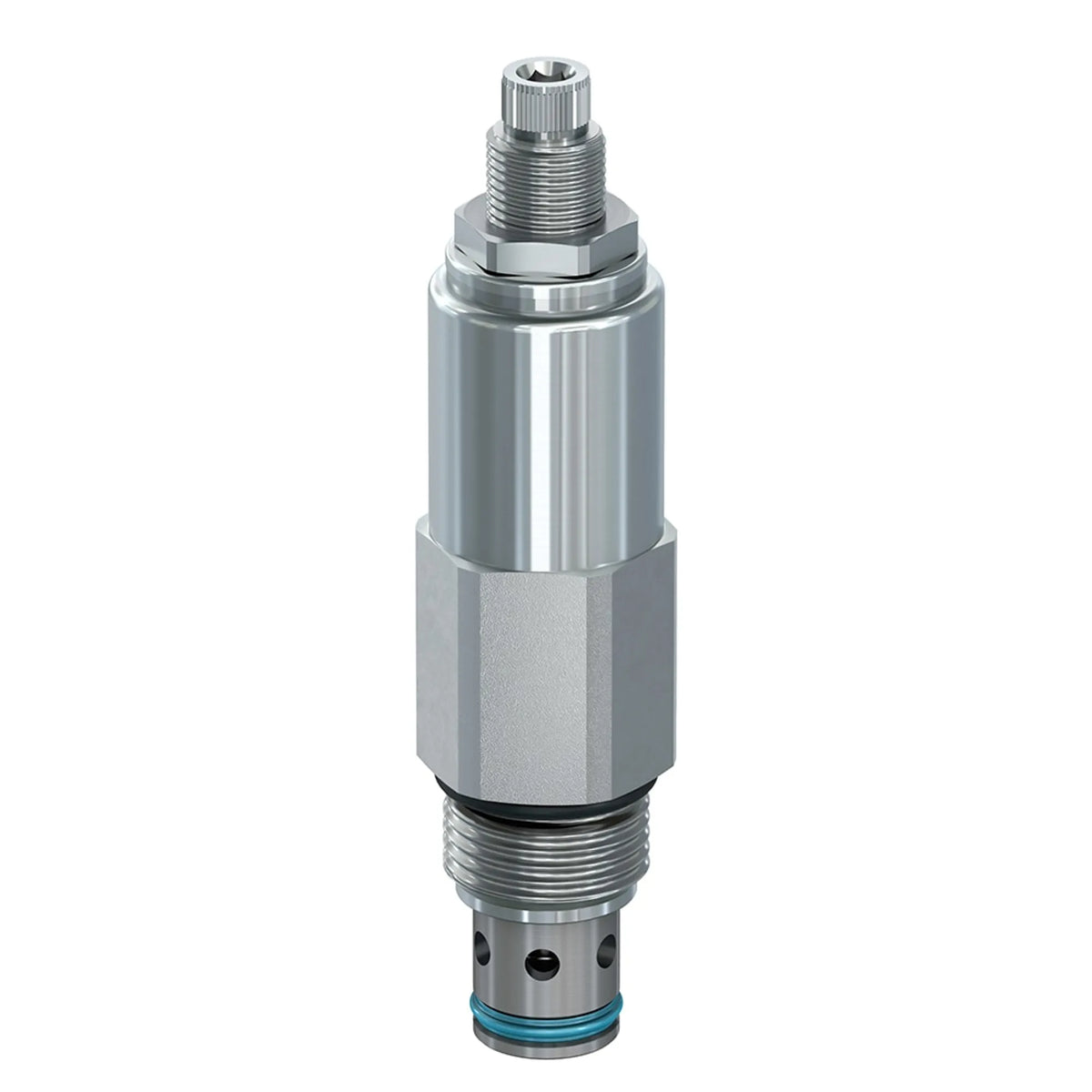

SKU:RDH103S50
PRESSURE RELIEF VALVE
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Division
HydraulicValve Systems Division
Division id
687505
Maximum operating pressure
5500 psi
Product series
Direct Acting Differential Area Relief Valves
Region
NA
Url
Actuation type
Pressure Sensing
Configuration
Differential Area Relief, Differential Relief w/Reverse Flow Check
Cracking pressure
N/A psi
Maximum flow rate
75 L/min, 20 gal/min
Maximum operating temperature
+93 °C, +200 °F
Minimum operating temperature
-37 °C, -35 °F
Mounting type
Screw in cartridge valve
Operation type
Automatic
Seal material
D-Ring (Standard)
Weight
0.23 kg, 0.5 lb
Adjustment mechanism
Screw
Flow rate
75 L/min, 20 gal/min
Function
Direct Acting
Operating temperature
-37 to +93 °C, -35 to +200 °F
For fluid type
Mineral-based or synthetic hydraulic fluids
No specifications found.
