SKU:58634050

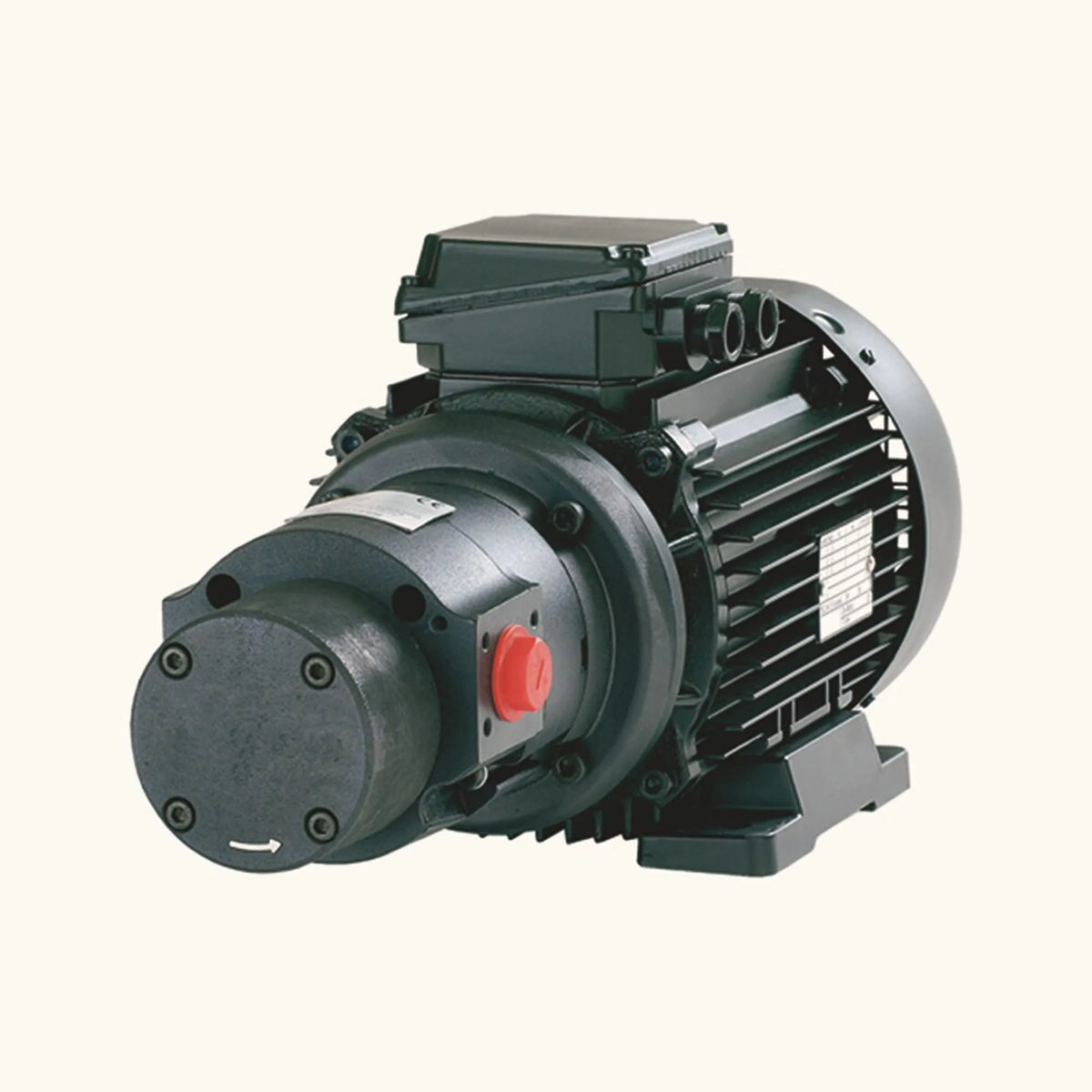

QPM3 40-4-1,5 230/400-50 PUMP/STD-MOTOR UNIT
Availability
+ 63 days
Availability
Inventory
+ 63 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Lubrication Systems, General Industrial, Power Units
Body Material
Pump Housing/Pump Cover to Aluminum with Anodized surfaces
Division (facet only)
Hydraulic Actuator Division Europe
Division id
687940
Maximum operating pressure
10 bar
Product series
QPM3 Gerotor Pump
Region
EU
Url
Maximum flow rate
40 L/min
Weight
21 kg
Product type
QPM3 40-4-1.5 230/400-50
For fluid type
Mineral Oils Max. 800 cSt
Materials of construction
Body/Cover to Aluminum, Shaft/Gerotor to Steel
Height
230 mm
Maximum fluid temperature
100 °C
Port size
G 1-1/2 inch Inlet, G 1 inch Outlet
No specifications found.
