SKU:026-46031-0

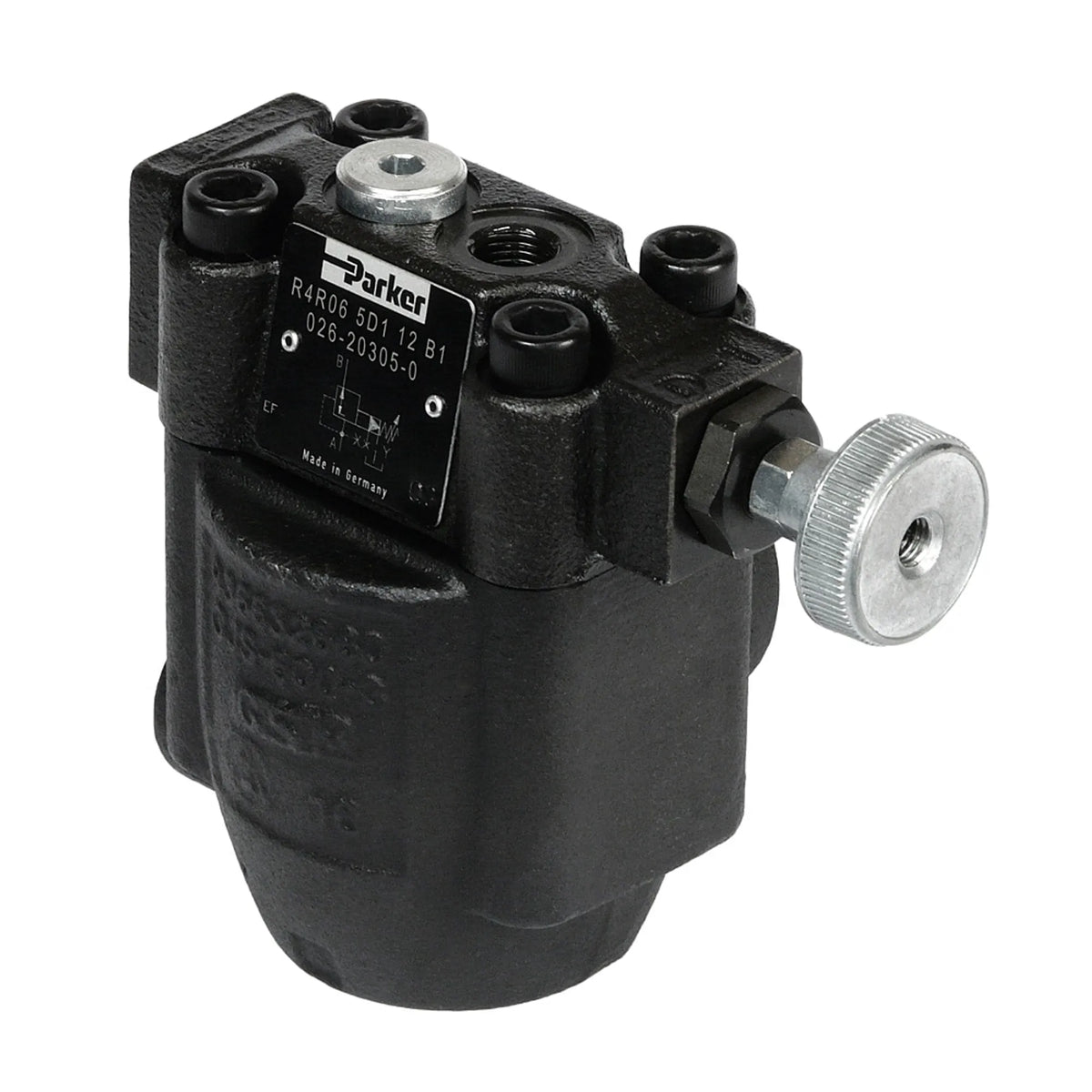

R4R10-5D312B110 PRESSURE REDUCING VALVE
Availability
+ 8 days
Availability
Inventory
+ 8 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Body Material
Cast Iron
Division (facet only)
Hydraulic Valve Systems Division Europe
Division id
687478
Maximum operating pressure
350 bar Ports A, B, X, 0 bar Port Y depressurized
Region
EU
Url
Drain option
Drain Line External From Pilot Head (Y1)
Actuation type
Manual
Maximum operating temperature
60 °C
Minimum operating temperature
-20 °C
Mounting type
Pipe Mounting
Operation type
Pilot
Port connection
NG32 / G1 1/4"
Seal material
NBR
Weight
6.6 kg
Flow rate
450 L/min
No specifications found.
Related documents
Related documents
