SKU:RAH121S30

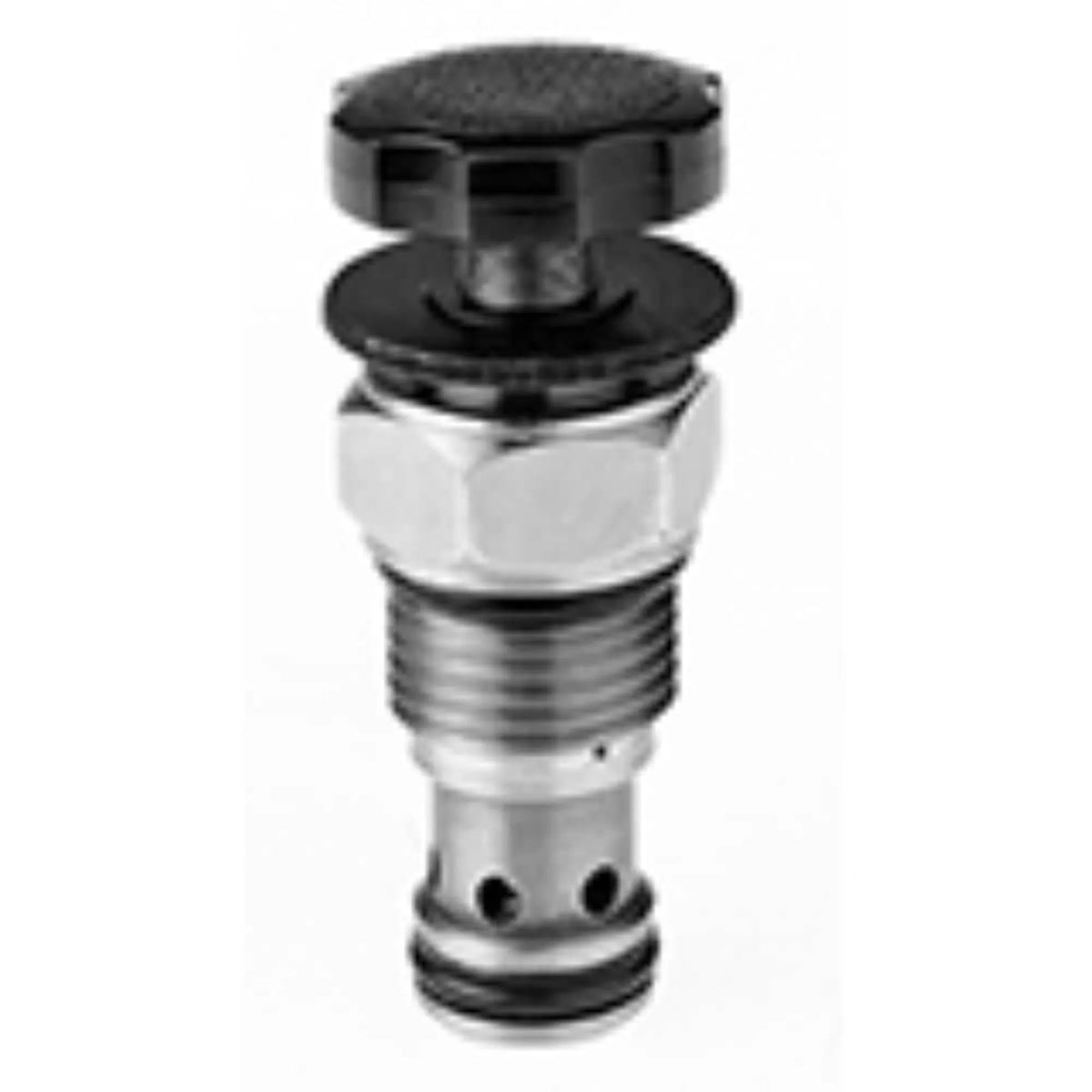

RAH121S30 PRESSURE RELIEF VALVE
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Division
Hydraulic Valve Systems Division
Division (facet only)
Hydraulic Valve Systems Division
Division id
687505
Maximum operating pressure
350 bar, 5000 psi
Product series
Pilot Operated Relief Valves
Region
NA
Url
Actuation type
Pressure Sensing
Configuration
Pressure Relief
Maximum flow rate
189.5 L/min, 50 gal/min
Maximum operating temperature
+121 °C, +250 °F
Minimum operating temperature
-34 °C, -30 °F
Mounting type
Screw in cartridge valve
Operation type
Automatic
Seal material
Nitrile
Weight
0.22 kg, 0.48 lb
Adjustment mechanism
Screw
Flow rate
189.5 L/min, 50 gal/min
Function
Pilot Operated
Operating temperature
-34 to +121 °C, -30 to +250 °F
For fluid type
Mineral-based or synthetic hydraulic fluids
