SKU:RE06M35W2N1XW

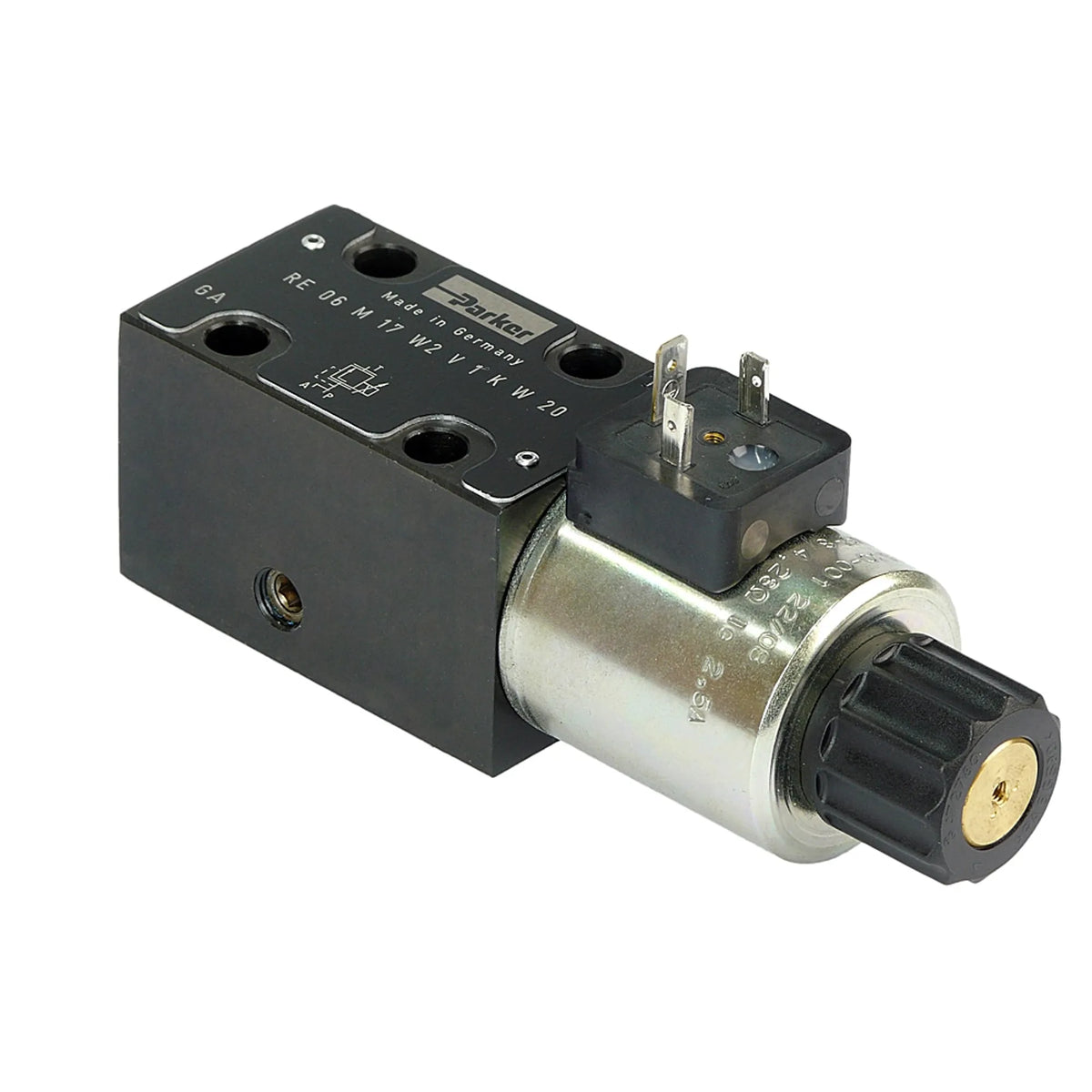

RE06M35W2N1XW20 PROP. PRESSURE RELIEF VALVE
Availability
+ 8 days
Availability
Inventory
+ 8 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Body Material
Cast iron
Division (facet only)
Hydraulic Valve Systems Division Europe
Division id
687478
Maximum operating pressure
350 bar
Port type
2 pressure ports, A and P
Region
EU
Url
Actuation type
Solenoid, proportional
Maximum flow rate
2.5 L/min
Maximum operating temperature
60 °C
Minimum operating temperature
-20 °C
Mounting type
Subplate mounting
Operation type
Direct
Port connection
NG06 / CETOP 03
Seal material
NBR
Weight
1.8 kg
Mounting position
Unrestricted, horizontal mounting preferred
For fluid type
Hydraulic oil according to DIN 51524
No specifications found.
