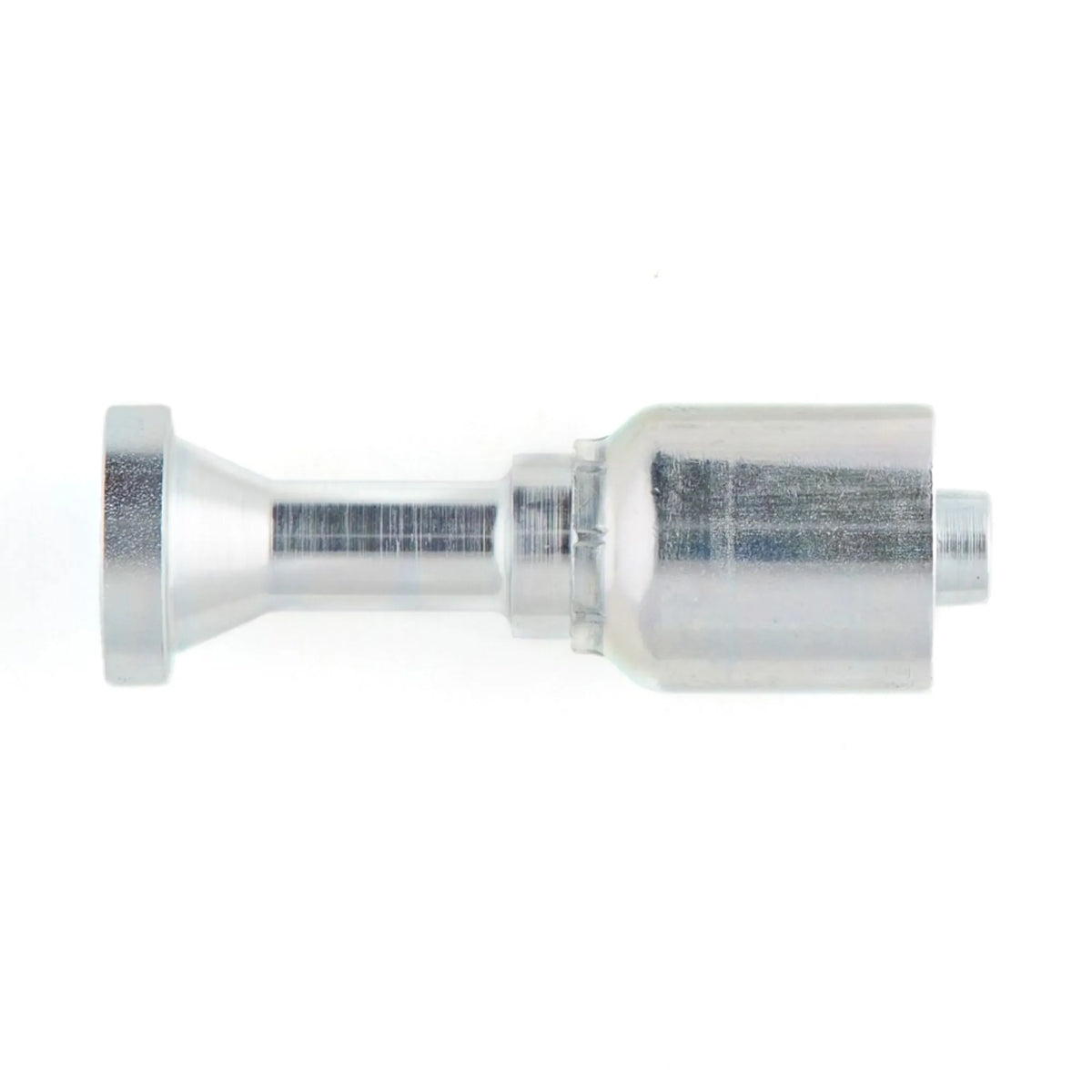

SKU:11577-12-8
SAE Code 61 - straight
Availability
+ 28 days
Availability
Inventory
+ 28 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Petroleum Base Hydraulic Fluids, Lubricating Oils
Body Material
Steel
Brand
Parker
Connection 1 size
-8 (Size), 1/2 inch, 12.7 mm
Connection 1 type
Hose
Connection 2 size
3/4 inch
Connection 2 type
Flange, Code 61 Flange, SAE
Connection length
33 mm (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Hose Products Division
Division id
687583
Fitting length
67 mm (see drawing legend A)
Industry
Industrial Manufacturing Equipment, Off-road Machinery
Maximum operating pressure
35.0 MPa, 350 bar
Port type
SFL
Product series
77 Series Fittings
Region
NA
Shape
Straight
Specifications met
ISO 12151-3-S-L
Technology
Fluid & Gas Handling
Url
Flange size
3/4 inch
Configuration
Hose to Port
Port connection
3/4"
Product type
Crimp Fittings No-Skive
For fluid type
Petroleum Hydraulic Fluids (Petroleum Base), Lubricants (Oils)
Materials of construction
Steel
Product style
SAE Code 61 Flange Head
Hose inside diameter
-8 (Size), 1/2 inch
Port size
3/4 inch
No specifications found.
