SKU:FM2DDSVHT

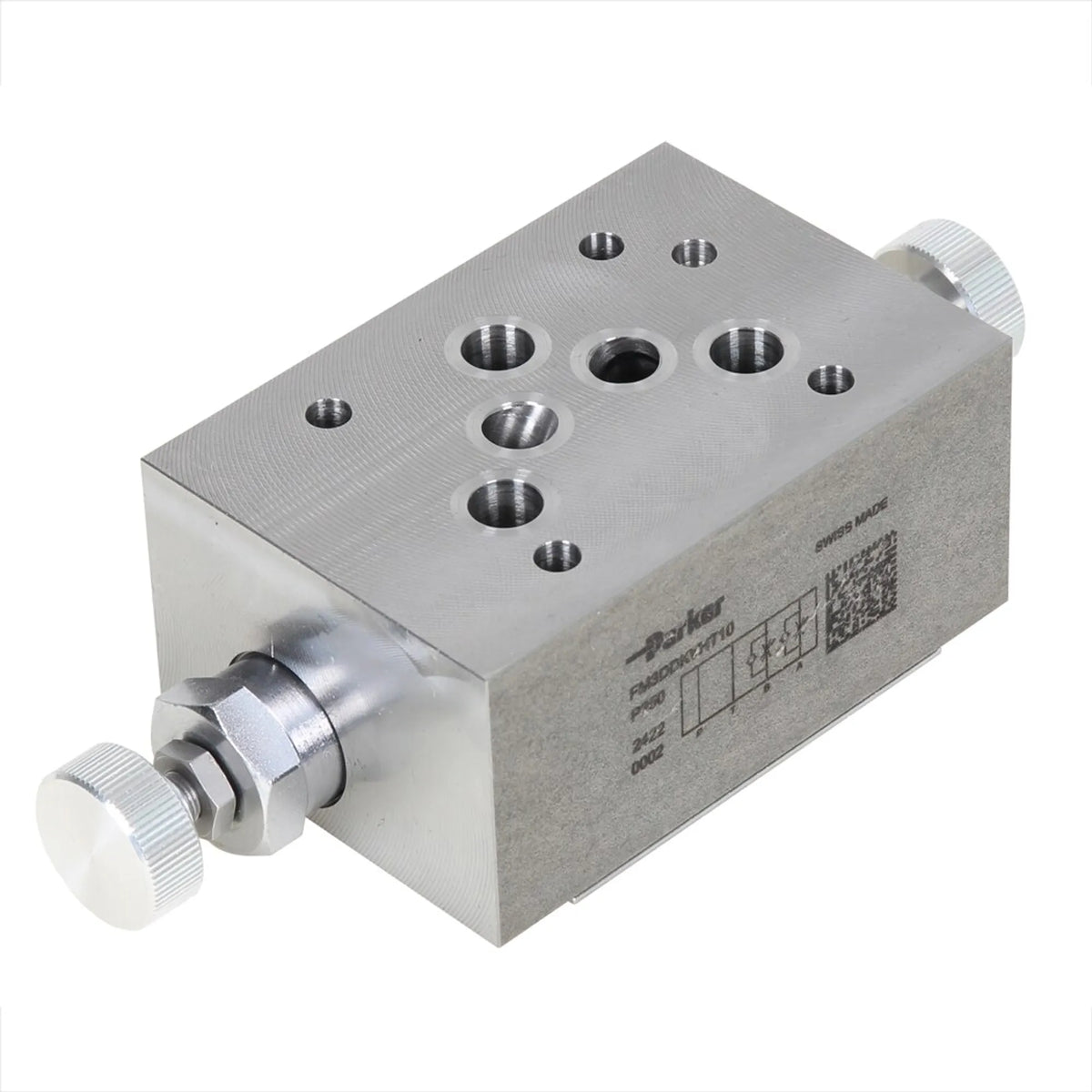

Throttle Check Valve A&B, NG06, Flow 80 l/min, Check 1.5 Bar, Max 350 Bar
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Body Material
Steel
Coating
without coating
Division (facet only)
Hydraulic Valve Systems Division Europe
Division id
687478
Maximum operating pressure
350 bar
Region
EU
Url
Actuation type
Manually
Cracking pressure
0.5 bar
Maximum flow rate
80 L/min
Maximum operating temperature
70 °C
Minimum operating temperature
-20 °C
Mounting type
Sandwich plate
Port connection
NG06 / CETOP 03
Seal material
FPM
Weight
1.3 kg
Adjustment mechanism
Hexagon socket
Mounting position
Unrestricted
