SKU:RDH101S30

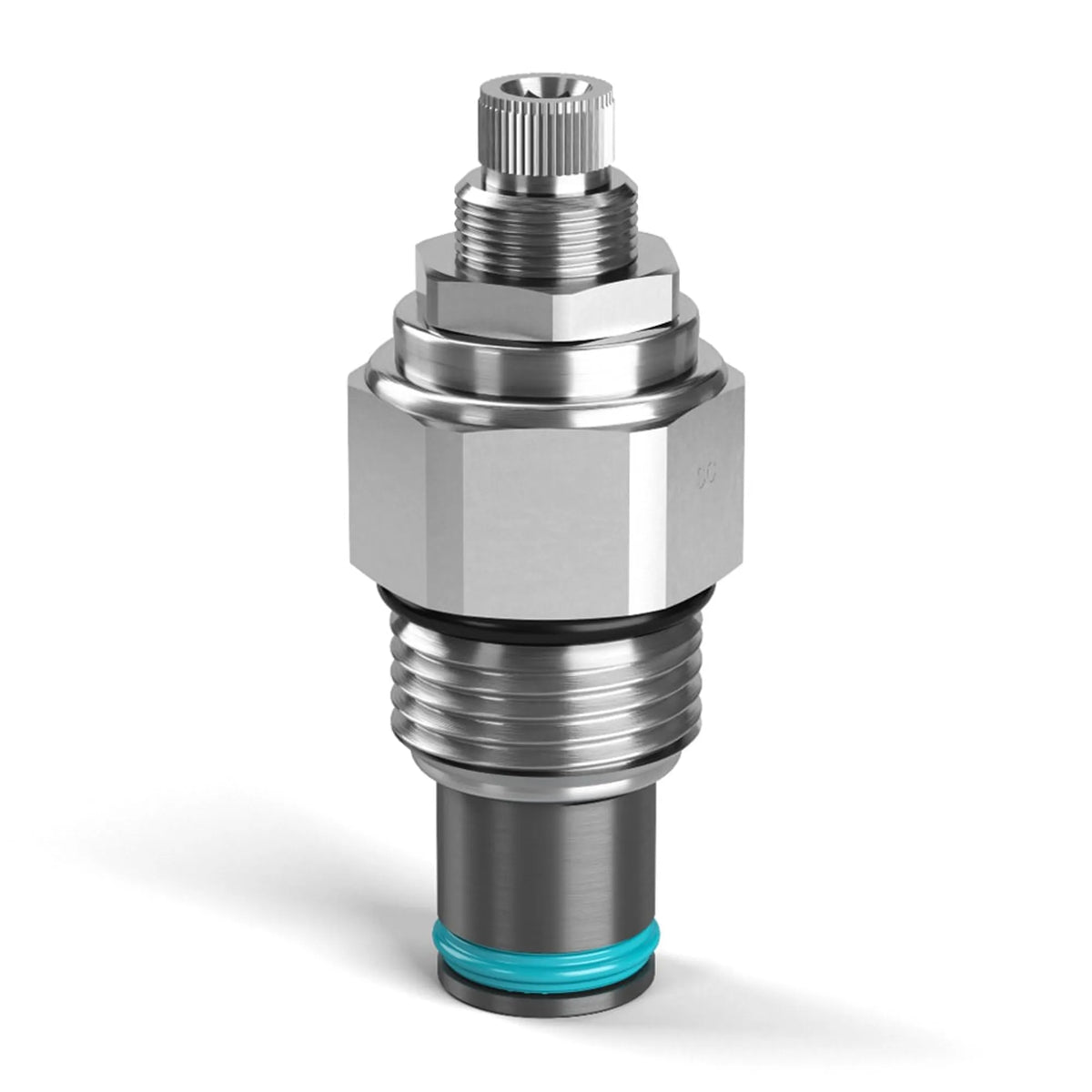

VALVE ASSY -10
Availability
+ 3 days
Availability
Inventory
+ 3 days lead time
Express delivery in 1–2 business days is available for the entire quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Division
Hydraulic Valve Systems Division
Division id
687505
Maximum operating pressure
380 bar, 5500 psi
Product series
Direct Acting Relief Valves
Region
NA
Url
Actuation type
Pressure Sensing
Configuration
Pressure Relief
Maximum flow rate
1.9 L/min, 0.5 gal/min
Maximum operating temperature
+93 °C, +200 °F
Minimum operating temperature
-37 °C, -35 °F
Mounting type
Screw in cartridge valve
Operation type
Automatic
Seal material
D-Ring (Standard)
Weight
0.18 kg, 0.4 lb
Adjustment mechanism
Screw
Flow rate
1.9 L/min, 0.5 gal/min
Function
Direct Acting
Operating temperature
-37 to +93 °C, -35 to +200 °F
For fluid type
Mineral-based or synthetic hydraulic fluids
No specifications found.
