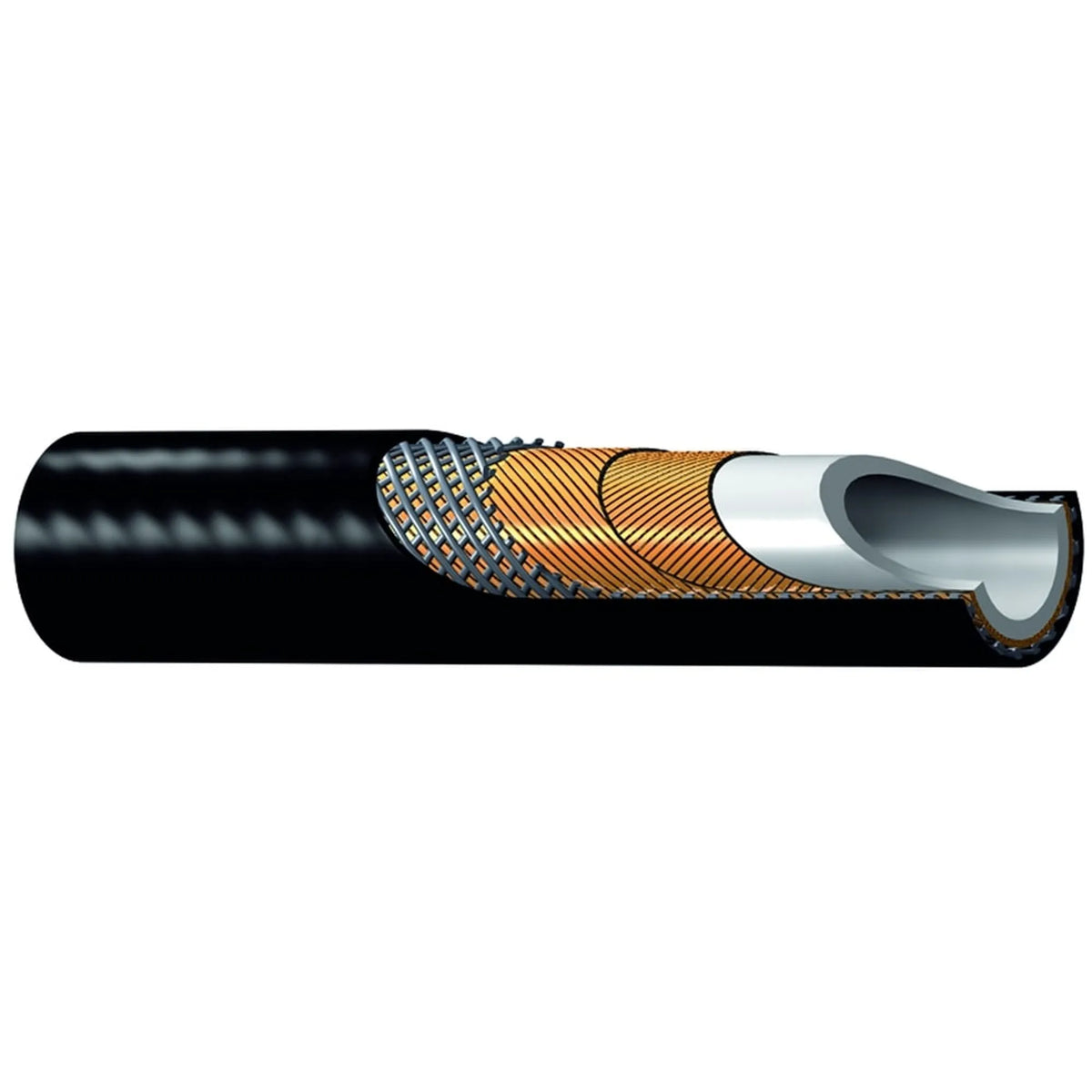

SKU:2380N-16V12
WP. 345 BAR / BP. 1380 BAR ID. 25.2 mm / OD. 36.8 mm
Availability
+ 18 days
Availability
Inventory
+ 18 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Oil & Gas Hydraulic Systems, Portable Equipment, Subsea Control Lines
Division (facet only)
Parflex Division
Division id
687563
Maximum operating pressure
5000, 34.5 MPa, 345 bar
Product series
2380n - 2388n pfd
Region
NA
Specifications met
ISO 13628-5, API 17E (1.5 design factor)
Url
Maximum operating temperature
100 °C, 212 °F
Minimum operating temperature
-40 °C, -40 °F
Weight
1.49 kg/m, 1 lb/ft
Product style
Subsea BOP Hose
Outside diameter
1.450 inch, 36.8 mm
No specifications found.
